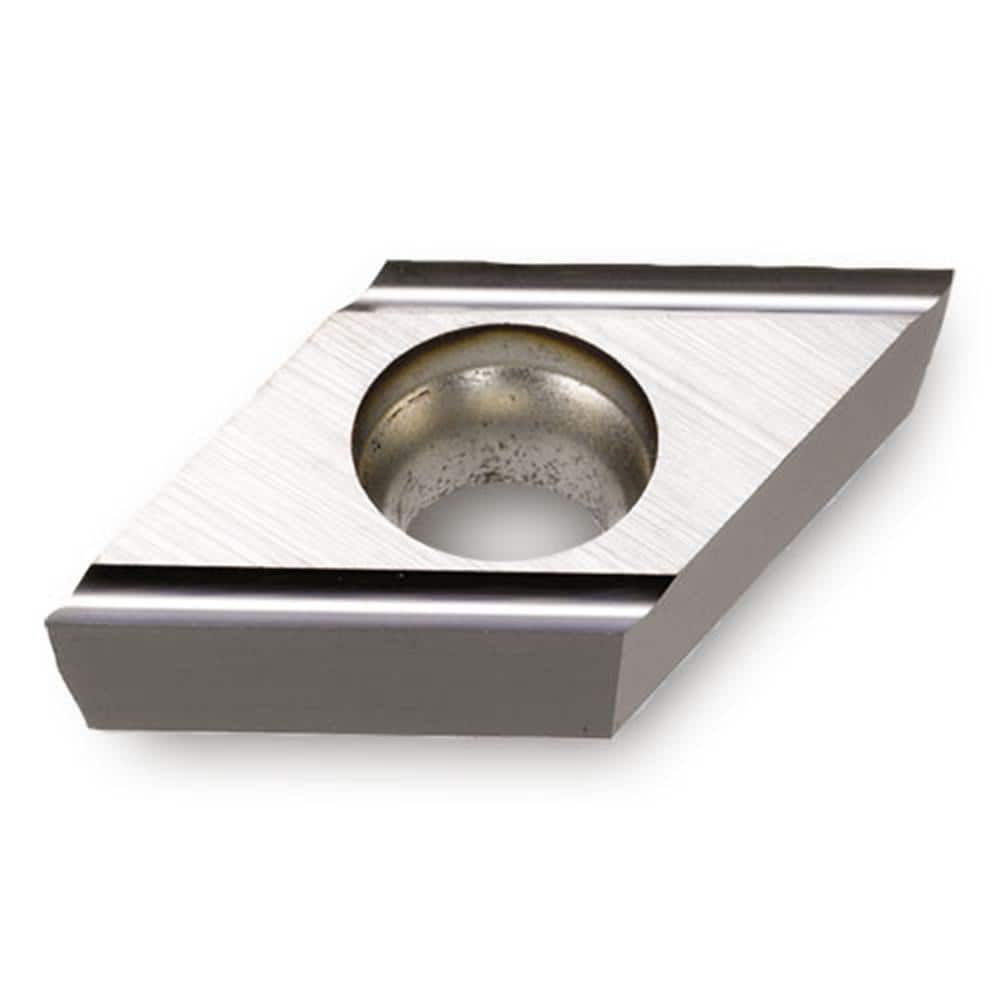

Turning Insert: DCET32.5X0R-GW TT9020, Solid Carbide TiCN Finish, Right Hand, 0.4570″ Long, 3/8″ Inscribed Circle, 0.0010″ Corner Radius, 55.0 ° N/A Diamond, Series DCET
Item #: 74381245
Brand: Ingersoll Cutting Tools
Model #: 5517503
Product Specifications
| Insert Style | DCET |
| Insert Shape Code | D |
| Insert Size Code | 32.50 |
| Insert Shape | Diamond |
| Clearance Code | C |
| Tolerance Code | E |
| Insert Material | Solid Carbide |
| Manufacturer Grade | TT9020 |
| Hole Diameter (Decimal Inch) | 0.1730 |
| Maximum Depth of Cut (Decimal Inch) | 0.1000 |
| Inscribed Circle (Inch) | 3/8 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Insert Holding Method | Screw |
| Width (Inch) | 3/8 |
| Insert Hand | Right Hand |
| Insert Thickness (Decimal Inch) | 0.1560 |
| Corner Radius (Decimal Inch) | 0.0010 |
| Included Angle | 55.0 |
| Relief Angle | 7 |
| Series | DCET |
| Coating Process | PVD |
| Rake | Positive |
| Wiper Edge | Yes |
| Insert Length (Decimal Inch) | 0.4570 |
| Number Of Cutting Edges | 2 |
| Primary Workpiece Material | Stainless Steel; Steel |
| Primary Workpiece Material Code | P; M |
| Ansi Code | DCET32.5X0RGWTT9020 |
| Iso Code | DCET11T3003R-GW TT9020 |
| Chip Breaker | GW |
| Width (Decimal Inch - 4 Decimals) | 0.3750 |
| Coating/Finish | TiCN |
