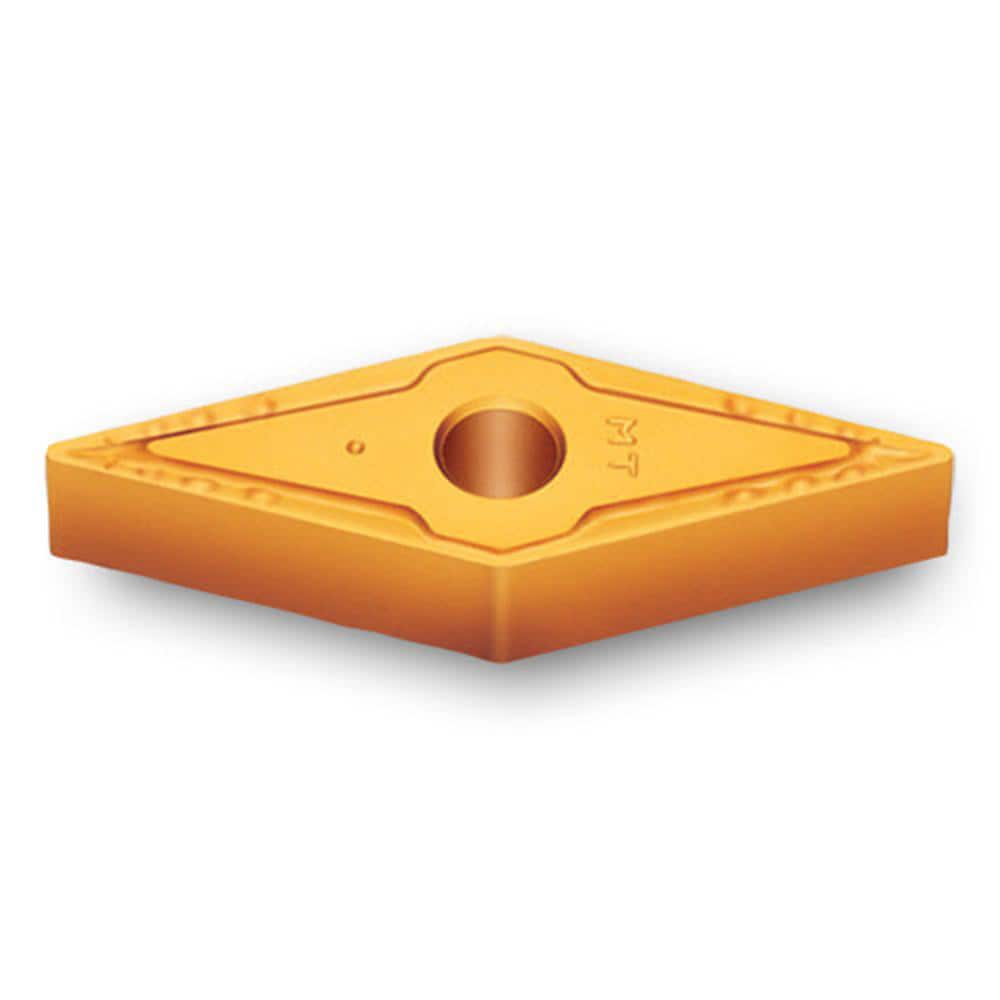

Turning Insert: VNMX2.532PC TT8115B, Carbide
Item #: 29819919
Brand: Ingersoll Cutting Tools
Model #: 6212635
Product Specifications
| ANSI Insert Code | VNMX2.532 |
| ISO Insert Code | VNMX130408 |
| Relief Angle | 0 |
| Insert Style | VNMX |
| Corner Radius (Decimal Inch) | 0.0310 |
| Included Angle | 35 |
| Manufacturer Grade | TT8115B |
| Coating/Finish | TiCN; TiN; Al2O3 |
| Wiper Edge | No |
| Insert Hand | Neutral |
| Insert Thickness (Decimal Inch) | 0.1870 |
| Series | VNMX |
| Inscribed Circle (Decimal Inch) | 0.3130 |
| Insert Material | Carbide |
| Insert Shape | V - Diamond (Rhombic) 35-Deg |
| Chip Breaker Operation | Medium Machining; Finishing |
| Grade Characteristics | Steel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness |
| Side Clearance | Negative |
| Number Of Cutting Edges | 4 |
| Insert Shape Code | V |
| Maximum Depth of Cut (Decimal Inch) | 0.1180 |
| Insert Holding Method | Clamp |
| Clearance Code | N |
| Tolerance Code | M |
| Coating Process | CVD |
| Rake | Negative |
| Insert Length (Decimal Inch) | 0.5460 |
| Primary Workpiece Material | Steel |
| Primary Workpiece Material Code | P |
| Iso Code | VNMX130408PC TT8115B |
| Chip Breaker | PC |
| ANSI Size Code | 2.532 |
| ISO Size Code | 130408 |
| UNSPSC Code | 23242105 |
| Insert Size Code | 2.532 |
