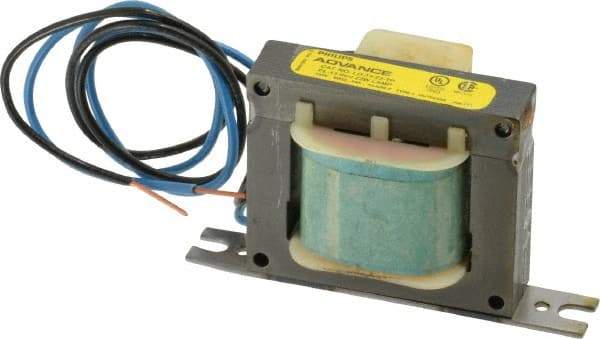

Philips Advance - 1 Lamp, 120 Volt, 0.21 to 0.29 Amp, 0 to 39 Watt, Preheat, Magnetic, Nondimmable Fluorescent Ballast - 0.89, 1.00 Ballast Factor, Thermal Protection, T4, T5 Lamp
Item #: 74320375
Brand: Philips Advance
Model #: LO1322TPM
Exact Tooling IR#: 04
Features and Benefits
Preheat ballasts are used with either a starter or manual switch to establish a current through the ballast to the lamp. The preheat ballast will maintain the lamp current to the proper operating level once turned on.
| Product Specifications | |
|---|---|
| Lamp Type | T4; T5 |
| Lamp Wattage Range | 0-39 |
| Voltage | 120 |
| Number of Lamps | 1 |
| Lamp Starting Method | Preheat Ballast |
| Ballast Factor Range | Normal (0.75-0.99) & Normal/High (1.00-1.19) |
| Dimmability | NonDimmable |
| Ballast Type | Magnetic |
| Lamp Wattage | 13; 18 |
| Amperage Range | 0.21-0.29 |
| Ballast Factor | 0.89; 1.00 |
| Minimum Starting Temperature (F) | 32; 50 |
| Total Harmonic Distortion (%) | <15; <20 |
| Can Code | M (6.5 x 2.375 x 1.5) |
| Additional Information | Thermal Protection |
