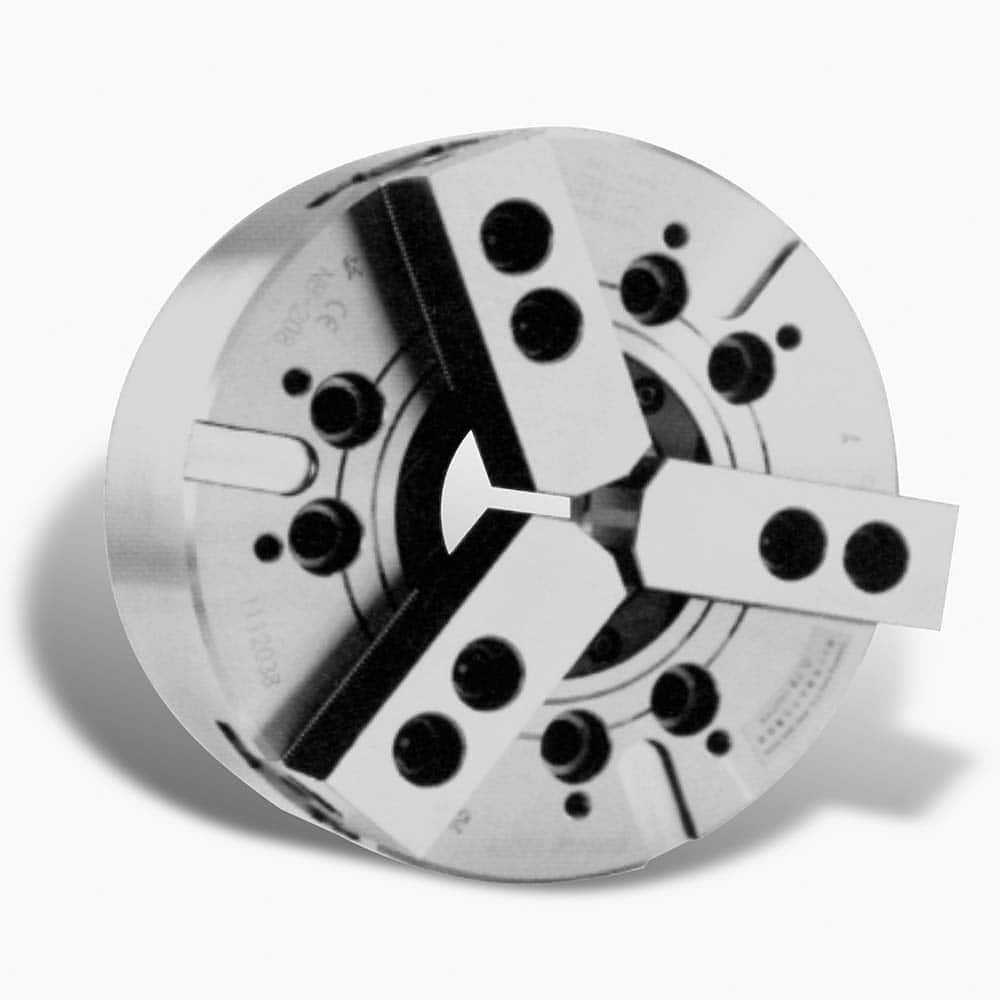

Atlas Workholding - 3 Jaw 7" Diam A2-5 Lathe Chuck
Item #: 74161993
Brand: Atlas Workholding
Model #: ATLB6-A5
Product Specifications
| Chuck Diameter (Decimal Inch) | 6.8890 |
| Number of Jaws | 3 |
| Mount | A2-5 |
| Through-Hole Diameter (Decimal Inch) | 2.0470 |
| Chuck Actuation Style | Drawbar |
| Jaw Interface Type | 1.5mm x 60 Serrated |
| Minimum Jaw Capacity (Decimal Inch) | 0.6490 |
| Maximum Jaw Capacity (Decimal Inch) | 6.8900 |
| Jaw Stroke Diameter (Decimal Inch) | 0.2520 |
| Piston Stroke Length (Decimal Inch) | 0.5910 |
| Maximum Drawbar Pulling Force (lbf) | 12815.00 |
| Maximum Static Gripping Force (lbf) | 12815.00 |
| Maximum RPM | 6000 |
