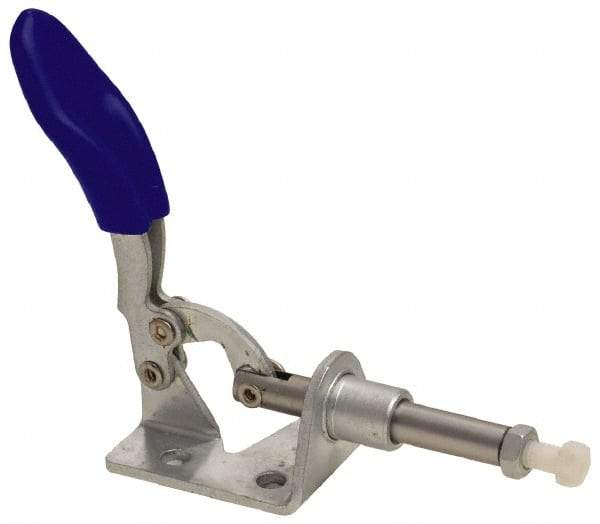

Gibraltar - 100 Lb Load Capacity, Flanged Base, Carbon Steel, Standard Straight Line Action Clamp - 3 Mounting Holes, 0.18" Mounting Hole Diam, 1/4" Plunger Diam, Thumb Handle
Item #: 73952921
Brand: Gibraltar
Exact Tooling IR#: 04
Features and Benefits
Carbon steel offers strength and rigidity during an application. It does not resist corrosion as well as stainless steel.
| Product Specifications | |
|---|---|
| Load Capacity (Lb.) | 100.00 |
| Plunger Travel (Decimal Inch) | 0.6300 |
| Plunger Shape | Round |
| Plunger Thread Style | External |
| Plunger Thread Size | 8-32 |
| Plunger Centerline Height (Decimal Inch) | 0.5000 |
| Plunger Diameter (Decimal Inch) | 0.2500 |
| Base Style | Flanged |
| Handle Style | Thumb |
| Material | Carbon Steel |
| Overall Length (Decimal Inch) | 2.5900 |
| Overall Height (Decimal Inch) | 1.1900 |
| Base Length (Decimal Inch) | 1.3100 |
| Base Width (Decimal Inch) | 1.0500 |
| Handle Color | Blue |
| Number of Mounting Holes | 3 |
| Length Distance Between Mount Holes (Decimal Inch) | 0.6300 |
| Width Distance Between Mount Holes (Decimal Inch) | 0.6300 |
| Mounting Hole Diameter (Decimal Inch) | 0.1800 |
| Jam Nut Height (Decimal Inch) | 0.1900 |
| Jam Nut Hex Size (Decimal Inch) | 0.3800 |
| Jam Nut Thread Size | 8-32 |
| Includes | Jam Nut |
