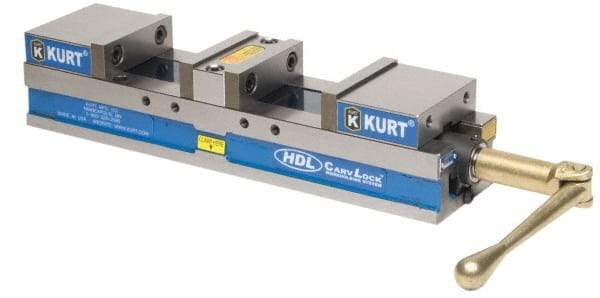

Kurt - 4" Jaw Width, 2-63/64" Jaw Opening Capacity, Horizontal Stationary Machine Vise - Manual Operation, 5,870 Lb Capacity, 1 Station, 17.7" Long x 3.775" High x 1-13/32" Deep, 35.56mm Jaw Height
Item #: 73411720
Brand: Kurt
Model #: HDL4J
Exact Tooling IR#: 04
Features and Benefits
Horizontal vises slide from side to side during milling operations.
Stationary vises are used for machining straight surfaces. They can be fastened to the machine at either a parallel or at a right angle.
| Product Specifications | |
|---|---|
| Jaw Width (Inch) | 4 |
| Jaw Opening Capacity (Inch) | 2-63/64 |
| Throat Depth (Inch) | 1-13/32 |
| Orientation Type | Horizontal |
| Number of Stations | 1 |
| Base Motion Type | Stationary |
| Operation Type | Manual |
| Jaw Height (mm) | 35.56 |
| Jaw Height (Decimal Inch) | 1.4000 |
| Base Length (mm) | 415.93 |
| Base Length (Decimal Inch) | 16.3750 |
| Precision | No |
| Overall Length (Decimal Inch) | 17.7000 |
| Base Width (Decimal Inch) | 4.0000 |
| Load Capacity (Lb.) | 5870.00 |
| Base Height (mm) | 60.33 |
| Base Height (Decimal Inch) | 2.3750 |
| Overall Height (Decimal Inch) | 3.7750 |
| Model Number | HDL4J |
