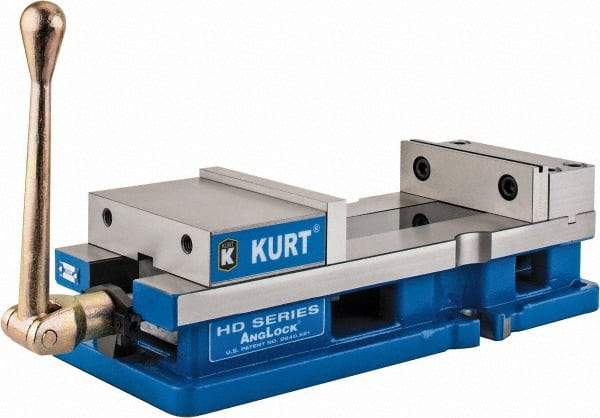

Kurt - 6" Jaw Width, 9-1/16" Jaw Opening Capacity, Horizontal Stationary Machine Vise - Manual Operation, 5,250 Lb Capacity, 1 Station, 18.32" Long x 4.86" High x 1-31/64" Deep, 1.735" Jaw Height, 5,250 Lb Max Clamp Force
Item #: 73411712
Brand: Kurt
Model #: HD690
Exact Tooling IR#: 04
Features and Benefits
Horizontal vises slide from side to side during milling operations.
Stationary vises are used for machining straight surfaces. They can be fastened to the machine at either a parallel or at a right angle.
| Product Specifications | |
|---|---|
| Jaw Width (Inch) | 6 |
| Jaw Opening Capacity (Inch) | 9-1/16 |
| Throat Depth (Inch) | 1-31/64 |
| Orientation Type | Horizontal |
| Number of Stations | 1 |
| Base Motion Type | Stationary |
| Operation Type | Manual |
| Jaw Height (Decimal Inch) | 1.7350 |
| Base Length (Decimal Inch) | 16.8100 |
| Precision | Yes |
| Overall Length (Decimal Inch) | 18.3200 |
| Base Width (Decimal Inch) | 7.3300 |
| Load Capacity (Lb.) | 5250.00 |
| Maximum Clamping Force (Ft/Lb) | 5250.00 |
| Overall Height (Decimal Inch) | 4.8600 |
| Model Number | HD690 |
