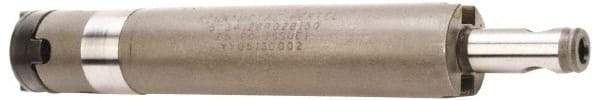

Kennametal - 3.1 Inch Nose Diameter, 12.4 Inch Projection, 50 Connection Size, Drilling Head Extension - 14.803 Inch Overall Length, 11.8 Inch Body Length, Includes Clamping Screws, Drive Ring
Item #: 73162364
Brand: Kennametal
Model #: 1134597
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Series | HTS |
| Connection Size | 50 |
| Projection (Decimal Inch) | 12.4000 |
| Projection (mm) | 314.96 |
| Nose Diameter (mm) | 78.74 |
| Nose Diameter (Decimal Inch) | 3.1000 |
| Overall Length (mm) | 376.00 |
| Overall Length (Decimal Inch) | 14.8030 |
| Body Length (mm) | 299.72 |
| Body Length (Decimal Inch) | 11.8000 |
| Includes | Clamping Screws; Drive Ring |
