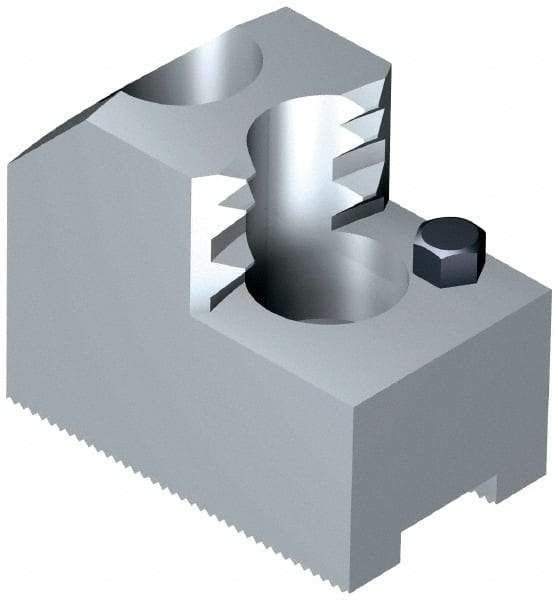

Schunk - 6" Max Chuck Diam Compatibility, Steel 1.5mm x 60° Serrated Hard Lathe Top Jaws - 12mm Groove Width, 35mm Wide x 1-7/8" High
Item #: 73114910
Brand: Schunk
Model #: 176103
Exact Tooling IR#: 04
Features and Benefits
Top jaws, also known as hard or step jaws, hold a workpiece during an operation. They are reversible and are bolted onto the master jaw.
| Product Specifications | |
|---|---|
| Jaw Type | Top Jaws |
| Jaw Interface Type | 1.5mm x 60 Serrated |
| Maximum Compatible Chuck Diameter (mm) | 152.40 |
| Maximum Compatible Chuck Diameter (Inch) | 6 |
| Maximum Compatible Chuck Diameter (Decimal Inch) | 6.00 |
| Material | Steel |
| Overall Width/Diameter (mm) | 35.00 |
| Minimum Compatible Chuck Diameter (Inch) | 6 |
| Groove Width (mm) | 12.00 |
| Groove Width (Decimal Inch) | 0.4724 |
| Maximum External Chucking Diameter (Decimal Inch) | 3.8200 |
| Number of Jaws | 3 |
| Maximum Internal Chucking Diameter (mm) | 97.00 |
| Overall Height (mm) | 47.63 |
| Overall Height (Inch) | 1-7/8 |
| Minimum Internal Chucking Diameter (mm) | 72.00 |
| Minimum Internal Chucking Diameter (Decimal Inch) | 2.8347 |
| Fastener Size (mm) | M10 |
| Distance Between Mount Hole Centers (mm) | 20.00 |
| Distance Between Mount Hole Centers (Decimal Inch) | 0.7874 |
