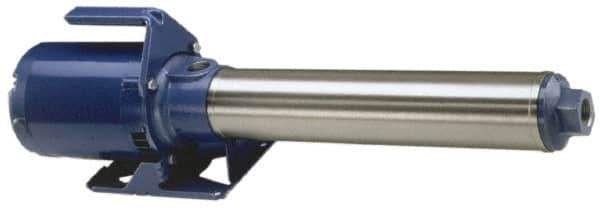

Goulds Pumps - 1 hp, 1 Phase, 115/230 Volt, Suction and Gravity Feed Pump, Multi Stage Booster Pump - Water Supply Booster, ODP Motor, 13 Stage
Item #: 73037285
Brand: Goulds Pumps
Model #: 7GBC10
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Applications | Water Supply Booster |
| Pump Type | Suction/Gravity Feed |
| Stages | 13 |
| Horsepower | 1 |
| Voltage | 115/230 |
| Motor Type | ODP |
| Phase | 1 |
| RPM | 3500.000 |
| GPM | 7.00 |
| Maximum Inlet Pressure (psi) | 75 |
| Maximum Working Pressure (psi) | 375.000 |
| Maximum Suction Lift (Feet) | 10 |
| Self Priming | No |
| Thread Type | NPT |
| Inlet Size (Inch) | 1 |
| Outlet Size (Inch) | 1 |
| Overall Height (Decimal Inch) | 31.1300 |
| Body Length (Decimal Inch) | 11.2500 |
| Shaft Length (Decimal Inch) | 18.880 |
| Distance Between Ports (Decimal Inch) | 16.88 |
| Housing Material | Cast Iron |
| Shaft Material | Stainless Steel |
| Seal Material | Carbon Ceramic Buna-N |
| Shut Off Feet (Feet) | 495 |
| GPM @ 40 Feet of Head | 13.200 |
| GPM @ 80 Feet of Head | 12.600 |
| GPM @ 160 Feet of Head | 11.3 |
| GPM @ 240 Feet of Head | 9.500 |
| GPM @ 320 Feet of Head | 8.2 |
| GPM @ 400 Feet of Head | 6.0 |
| Frame Type | 56J |
