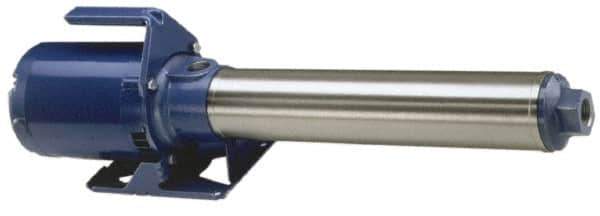

Goulds Pumps - 1/2 hp, 1 Phase, 115/230 Volt, Suction and Gravity Feed Pump, Multi Stage Booster Pump - Water Supply Booster, ODP Motor, 9 Stage
Item #: 73037269
Brand: Goulds Pumps
Model #: 5GBC05
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Applications | Water Supply Booster |
| Pump Type | Suction/Gravity Feed |
| Stages | 9 |
| Horsepower | 1/2 |
| Voltage | 115/230 |
| Motor Type | ODP |
| Phase | 1 |
| RPM | 3500.000 |
| GPM | 5.00 |
| Maximum Inlet Pressure (psi) | 75 |
| Maximum Working Pressure (psi) | 375.000 |
| Maximum Suction Lift (Feet) | 10 |
| Self Priming | No |
| Thread Type | NPT |
| Inlet Size (Inch) | 1 |
| Outlet Size (Inch) | 1 |
| Overall Height (Decimal Inch) | 23.1200 |
| Body Length (Decimal Inch) | 10.5000 |
| Shaft Length (Decimal Inch) | 12.620 |
| Distance Between Ports (Decimal Inch) | 10.62 |
| Housing Material | Cast Iron |
| Shaft Material | Stainless Steel |
| Seal Material | Carbon Ceramic Buna-N |
| Amperage Rating | 10.8/5.4 |
| Shut Off Feet (Feet) | 280 |
| GPM @ 40 Feet of Head | 9.100 |
| GPM @ 80 Feet of Head | 8.300 |
| GPM @ 160 Feet of Head | 6.4 |
| GPM @ 240 Feet of Head | 3.600 |
| Frame Type | 56J |
