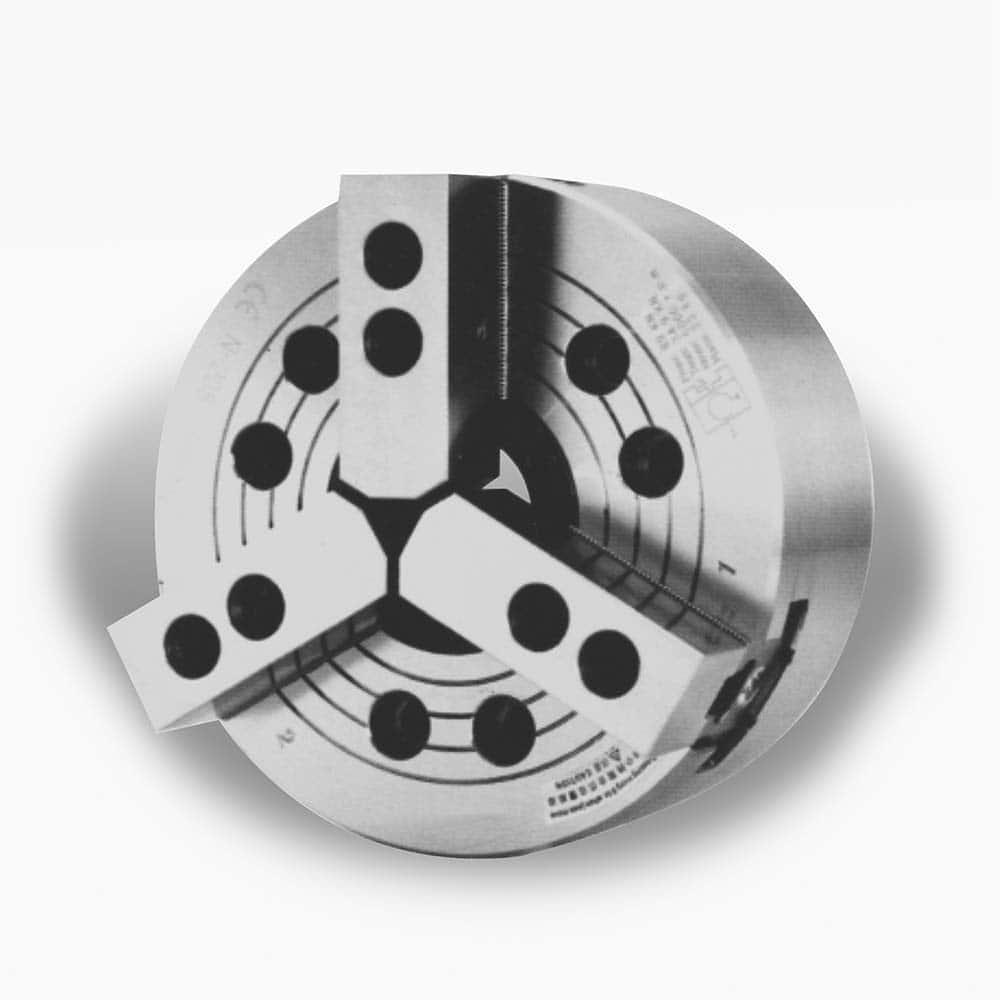

Atlas Workholding - 3 Jaw 15" Diam A2-11 Lathe Chuck
Item #: 72762362
Brand: Atlas Workholding
Model #: ATL15-A11
Product Specifications
| Chuck Diameter (Decimal Inch) | 15.0000 |
| Number of Jaws | 3 |
| Mount | A2-11 |
| Through-Hole Diameter (Decimal Inch) | 4.6260 |
| Chuck Actuation Style | Drawbar |
| Jaw Interface Type | 1.5mm x 60 Serrated |
| Minimum Jaw Capacity (Decimal Inch) | 1.1810 |
| Maximum Jaw Capacity (Decimal Inch) | 15.0000 |
| Jaw Stroke Diameter (Decimal Inch) | 0.4170 |
| Piston Stroke Length (Decimal Inch) | 0.9050 |
| Maximum Drawbar Pulling Force (lbf) | 15961.00 |
| Maximum Static Gripping Force (lbf) | 40465.00 |
| Maximum RPM | 2500 |
