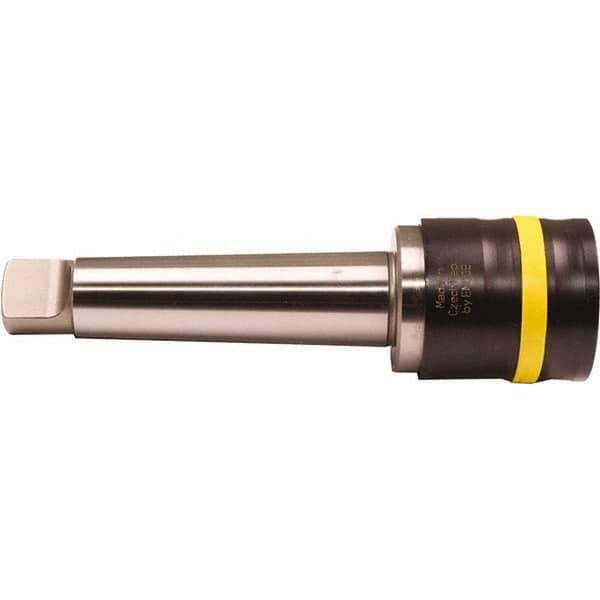

Emuge - 3MT Taper Shank Tension & Compression Tapping Chuck - M4.5 Min Tap Capacity, 71mm Projection, Size 3 Adapter, Quick Change
Item #: 72642234
Brand: Emuge
Model #: F3303103
Exact Tooling IR#: 04
Features and Benefits
Tension and compression tapping styles are engineered to automatically compensate for machine feed, pitch and tap rates. They feature a spring design that allows the tap to float during the cutting cycle without affecting the pitch.
Taper shanks maintain balance and rigidity during high speeds and heavy-duty applications. They have smaller diameters than straight shanks.
| Product Specifications | |
|---|---|
| Tapping Style | Tension & Compression |
| Shank Type | Taper Shank |
| Taper Size | 3MT |
| Minimum Tap Capacity (mm) | M4.5 |
| Projection (Decimal Inch) | 2.7953 |
| Projection (mm) | 71.00 |
| Quick Change | Yes |
| Hole Diameter (mm) | 31.00 |
| Adapter Size | 3 |
| Holder Series | KSN3 |
| Nose Diameter (mm) | 53.00 |
| Nose Diameter (Decimal Inch) | 2.0866 |
| Tension (mm) | 15.00 |
| Compression (Decimal Inch) | 0.3346 |
| Compression (mm) | 8.50 |
| Overall Length (mm) | 165.00 |
| Overall Length (Decimal Inch) | 6.4961 |
| Through Coolant | No |
