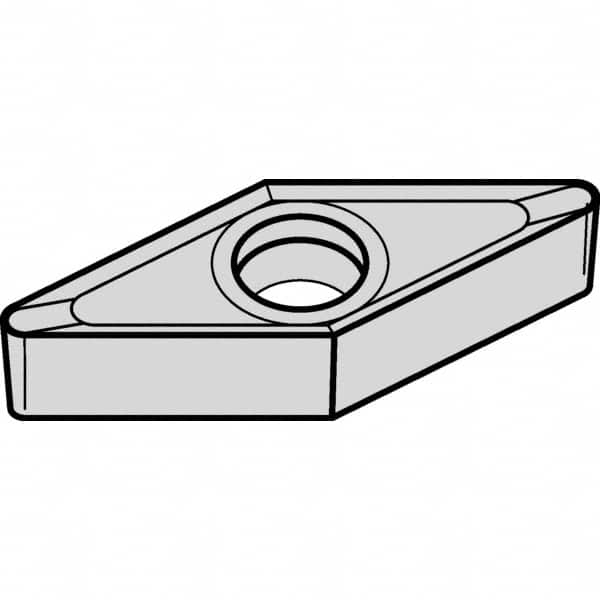

VBGT332HP KCU10 Carbide Turning Insert AlTiN Finish, Neutral, 0.654″ Long, 3/8″ Inscribed Circle, 1/32″ Corner Radius, 35° Included Angle
Item #: 72165632
Brand: Kennametal
Model #: 4045344
Product Specifications
| Insert Style | VBGT |
| Insert Shape Code | V |
| Insert Size Code | 332 |
| Clearance Code | B |
| Tolerance Code | G |
| Insert Material | Solid Carbide |
| Manufacturer Grade | KCU10 |
| Hole Diameter (Decimal Inch) | 0.1730 |
| Inscribed Circle (Inch) | 3/8 |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 3/16 |
| Corner Radius (Inch) | 1/32 |
| Included Angle | 35.0 |
| Relief Angle | 5 |
| Coating Process | PVD |
| Length Range (Decimal Inch) | 0.6500 - 0.7000 |
| Insert Length (Decimal Inch) | 0.6540 |
| Iso Code | VBGT160408HP |
| Manufacturers Catalog Number | VBGT332HP |
| Chip Breaker | T |
| Coating/Finish | AlTiN |
