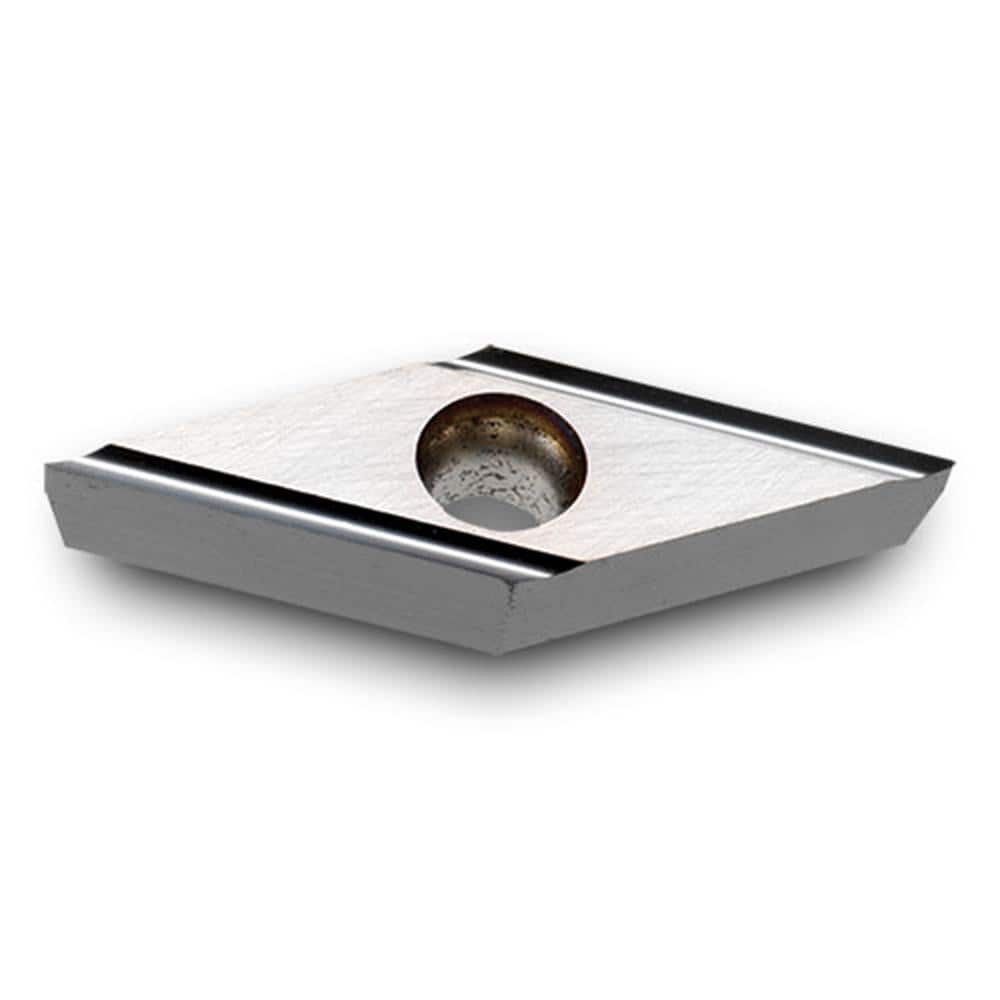

Turning Insert: VBET221L-GF TT9020, Solid Carbide TiCN Finish, Left Hand, 0.4370″ Long, 1/4″ Inscribed Circle, 0.0160″ Corner Radius, 35.0 ° N/A Diamond, Series VBET
Item #: 71981161
Brand: Ingersoll Cutting Tools
Model #: 5519677
Product Specifications
| Insert Style | VBET |
| Insert Shape Code | V |
| Insert Size Code | 221 |
| Insert Shape | Diamond |
| Clearance Code | B |
| Tolerance Code | E |
| Insert Material | Solid Carbide |
| Manufacturer Grade | TT9020 |
| Hole Diameter (Decimal Inch) | 0.1100 |
| Maximum Depth of Cut (Decimal Inch) | 0.0600 |
| Inscribed Circle (Inch) | 1/4 |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Insert Holding Method | Screw |
| Width (Inch) | 1/4 |
| Insert Hand | Left Hand |
| Insert Thickness (Inch) | 1/8 |
| Insert Thickness (Decimal Inch) | 0.1250 |
| Corner Radius (Decimal Inch) | 0.0160 |
| Included Angle | 35.0 |
| Relief Angle | 5 |
| Series | VBET |
| Coating Process | PVD |
| Rake | Positive |
| Wiper Edge | No |
| Insert Length (Decimal Inch) | 0.4370 |
| Number Of Cutting Edges | 2 |
| Primary Workpiece Material | Stainless Steel; Steel |
| Primary Workpiece Material Code | P; M |
| Ansi Code | VBET221LGFTT9020 |
| Iso Code | VBET110304L-GF TT9020 |
| Chip Breaker | GF |
| Width (Decimal Inch - 4 Decimals) | 0.2500 |
| Coating/Finish | TiCN |
