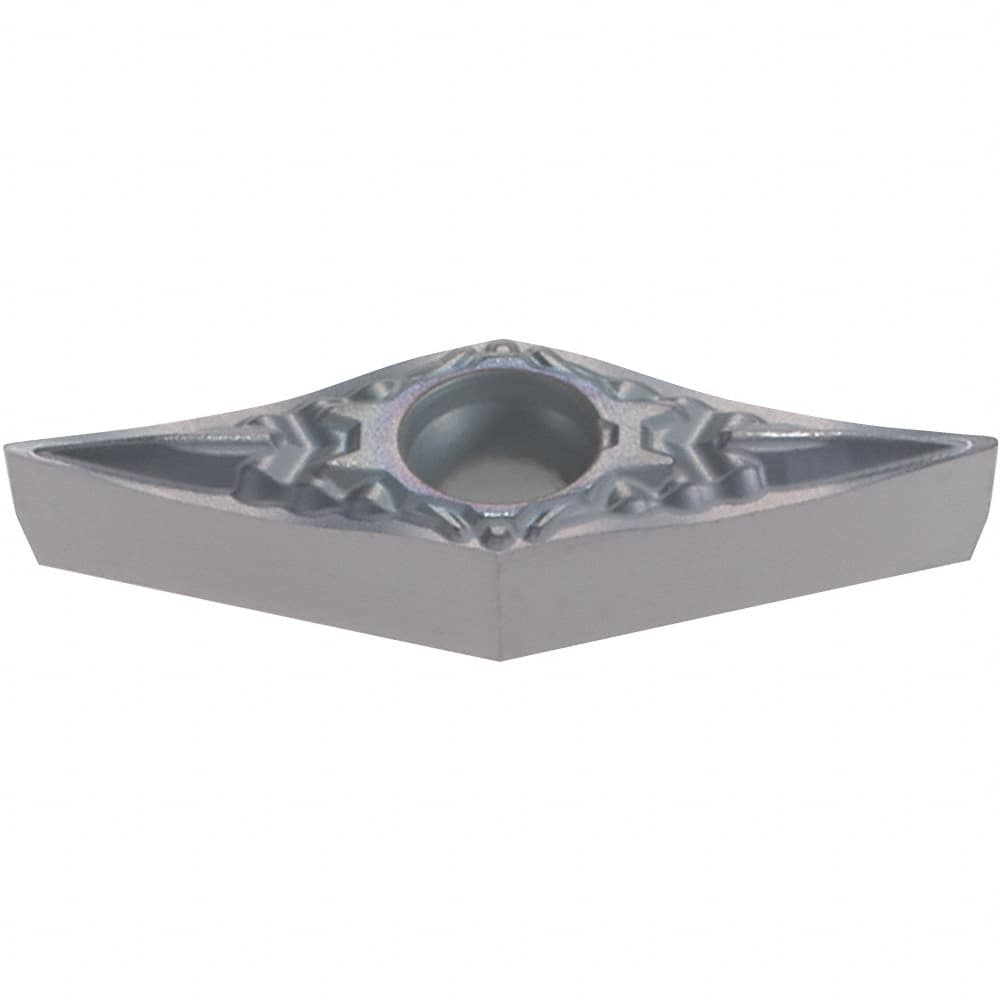

Turning Insert
Item #: 71972707
Brand: Tungaloy
Model #: 6853994
Product Specifications
| Insert Style | VBGT |
| Insert Shape Code | V |
| Insert Size Code | 11030 |
| Insert Shape | Diamond |
| Clearance Code | B |
| Tolerance Code | G |
| Manufacturer Grade | SH730 |
| Hole Diameter (Mm) ( - 0 Decimals) | 2.80 |
| Maximum Depth of Cut (mm) | 0.50 |
| Inscribed Circle (mm) | 6.35 |
| Insert Thickness | 3.18 |
| Corner Radius (mm) | 0.20 |
| Included Angle | 35.0 |
| Series | VBGT |
| Rake | Positive |
| Insert Length (mm) | 11.20 |
| Primary Workpiece Material | Superalloy; Stainless Steel; Steel |
| Primary Workpiece Material Code | P; S; M |
| Iso Code | VBGT110302FN-JS |
| Standards | ISO |
| Chip Breaker | JS |
| Coating/Finish | Coated |
