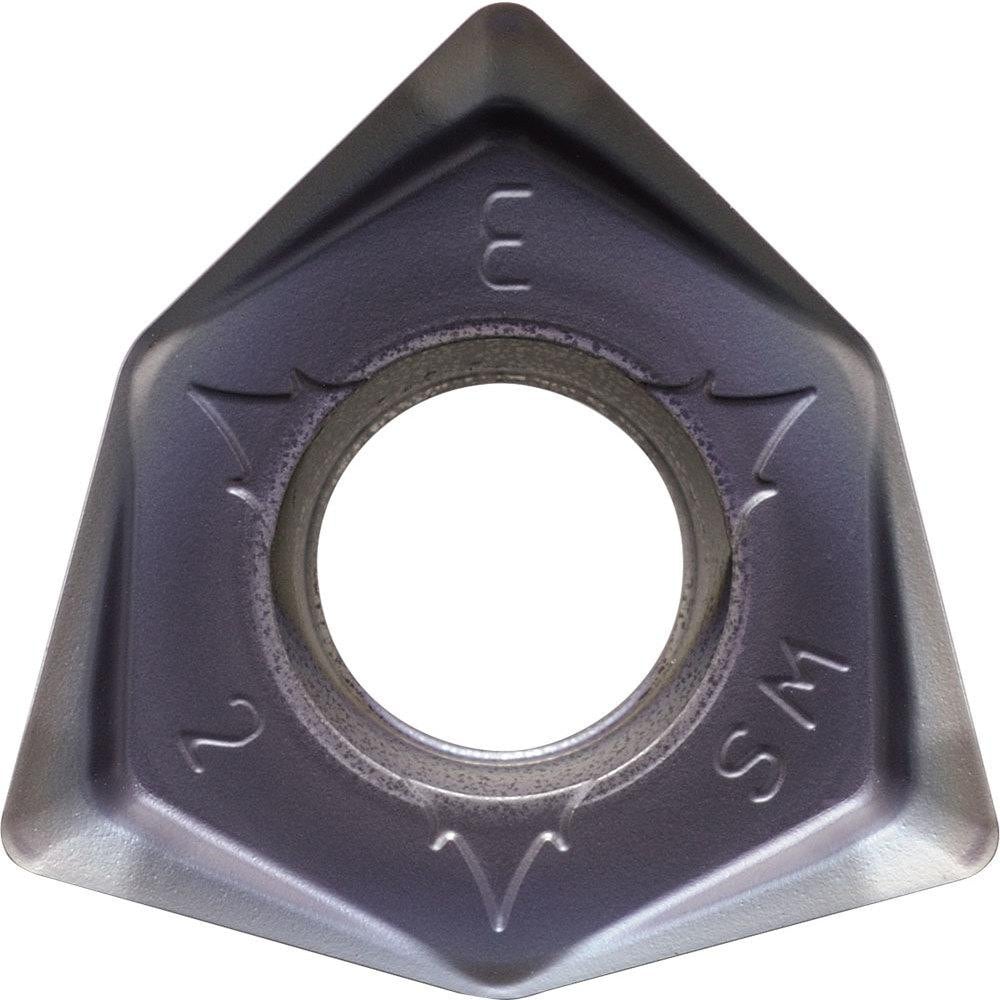

Milling Insert: WNMU050408EN-SM PR1810, Carbide
Item #: 86525839
Brand: Kyocera
Model #: TLS00110
Product Specifications
| Insert Style | WNMU |
| Insert Size | 050408 |
| Insert Material | Carbide |
| Insert Shape | Trigon |
| Manufacturer Grade | PR1810 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Corner Radius (mm) | 0.80 |
| Number Of Cutting Edges | 6 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1654 |
| Thickness (mm) | 4.2000 |
| Coating/Finish | MEGACOAT NANO EX |
| Inscribed Circle (Decimal Inch) | 0.3465 |
| Inscribed Circle (mm) | 8.80 |
| Corner Radius (Inch) | 1/32 |
| Insert Hand | Neutral |
| Series | MFWN Milling |
| Coating Process | PVD |
| Hole Diameter (Mm) ( - 0 Decimals) | 3.4000 |
| Hole Diameter (Decimal Inch) | 0.1339 |
| Rake | Negative |
| Primary Workpiece Material | Nodular Cast Iron; Gray Cast Iron |
| Primary Workpiece Material Code | K |
| Ansi Code | WNMU050408ENSMPR1810 |
| Iso Code | WNMU050408EN-SM |
| Cutting Edge Style | Low Cutting Force; Honed |
| Manufacturers Catalog Number | WNMU050408ENSMPR1810 |
| Chip Breaker | EN-SM |
| Cutting Direction | Neutral |
| UNSPSC Code | 23291601 |
| Insert Holding Method | Screw |
| Single or Double Sided Insert | Double |
| Included Angle Degree | 80 |
| Multi-Use Tool | Yes |
| Country of Origin | Japan |
