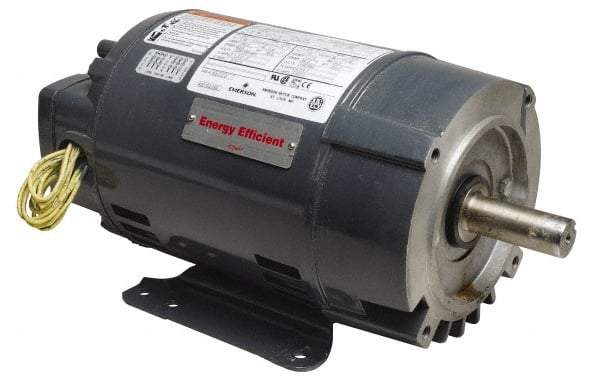

US Motors - 3 hp, ODP Enclosure, No Thermal Protection, 3,490 RPM, 208-230/460 Volt, 50/60 Hz, DripProof, Premium Efficiency Motor - Size 145TC Frame, Rigid Mount, 1 Speed, Ball Bearings, 8.2-7.3/3.7 Full Load Amps, F Class Insulation
Item #: 71379630
Brand: US Motors
Model #: D3P1DC
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Motor Type | DripProof, Premium Efficiency |
| Type of Enclosure | ODP |
| Horsepower | 3 |
| Thermal Protection Rating | None |
| Name Plate RPMs | 3490 |
| Voltage | 208-230/460 |
| Frequency Hz | 50/60 |
| Frame Size | 145TC |
| Mount Type | Rigid |
| Number of Speeds | 1 |
| Bearing Type | Ball |
| Applications | General Purpose |
| Full Load Amperage | 8.2-7.3/3.7 |
| Insulation Class | F |
| Service Factor Rating | 1.15 |
| PSC Code | 6105 |
