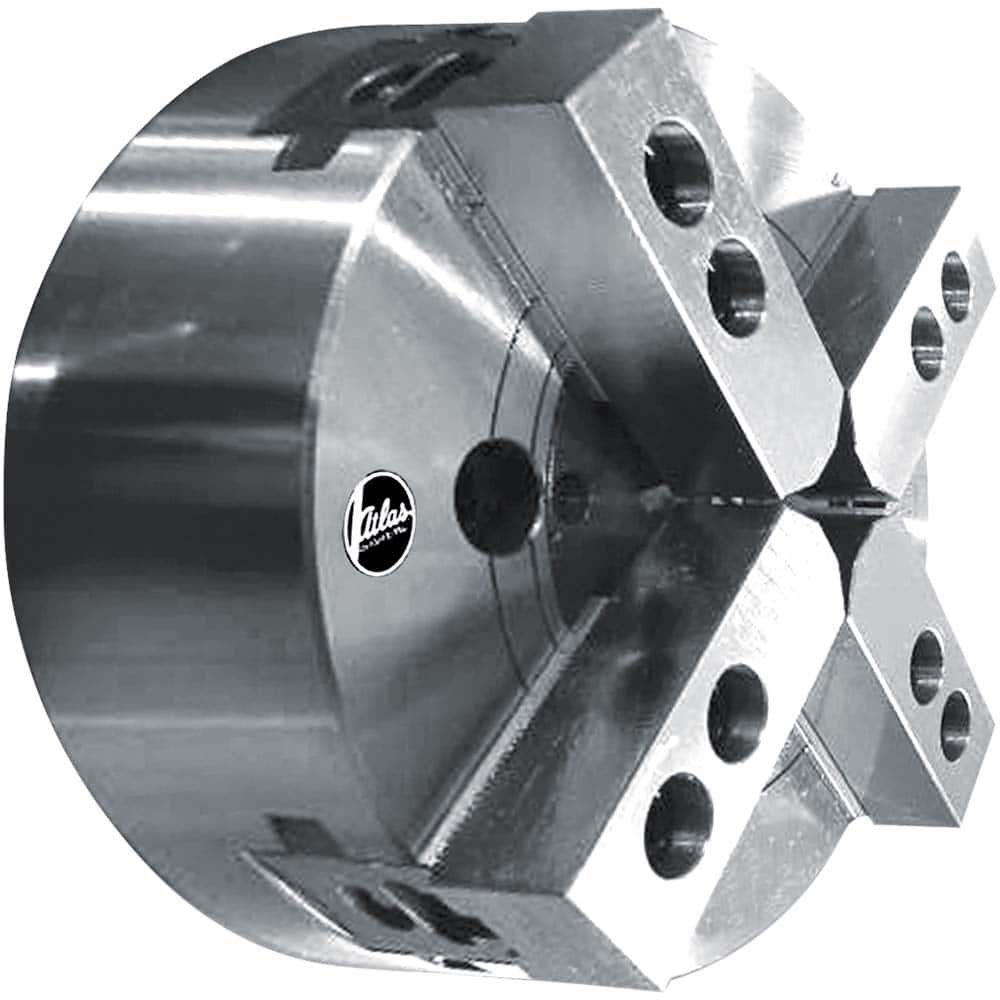

Atlas Workholding - 4 Jaw 8" Diam A-6 Lathe Chuck
Item #: 71156822
Brand: Atlas Workholding
Model #: 4ATL8-A6
Product Specifications
| Chuck Diameter (Decimal Inch) | 8.2600 |
| Number of Jaws | 4 |
| Mount | A-6 |
| Through-Hole Diameter (Decimal Inch) | 2.0500 |
| Chuck Actuation Style | Drawbar |
| Jaw Interface Type | 1.5mm x 60 Serrated |
| Minimum Jaw Capacity (Decimal Inch) | 0.9050 |
| Maximum Jaw Capacity (Decimal Inch) | 8.0000 |
| Jaw Stroke Diameter (Decimal Inch) | 0.2910 |
| Piston Stroke Length (Decimal Inch) | 0.6300 |
| Maximum Drawbar Pulling Force (lbf) | 7844.00 |
| Maximum Static Gripping Force (lbf) | 20007.00 |
| Maximum RPM | 5000 |
| Body Material | Steel |
