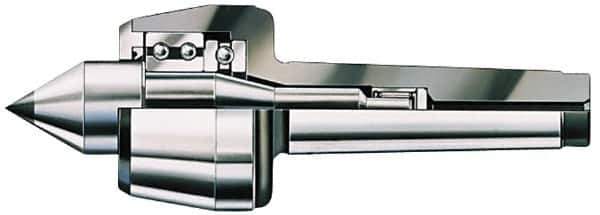

Rohm - MT3 Taper Shank, 1.9685" Head Diam Carbide Tipped Live Center - 6,300 Max RPM, 0.8661" Point Diam, 1.0826" Point Len, 529.11 Lb Max Workpc, 11mm Tip Diam, Long Point
Item #: 70567201
Brand: Rohm
Model #: 090089
Exact Tooling IR#: 04
Features and Benefits
Long points are used for shaft work, parts with large diameters and where tool clearance is a priority.
| Product Specifications | |
|---|---|
| Shank Type | Taper Shank |
| Taper Size | MT3 |
| Maximum Workpiece Weight (Lb.) | 529.11 |
| Maximum Workpiece Weight (kg) | 240.00 |
| Point Style | Long |
| Point Diameter (mm) | 22.00 |
| Point Diameter (Decimal Inch) | 0.8661 |
| Tip Diameter (mm) | 11.00 |
| Point Length (mm) | 27.50 |
| Point Length (Decimal Inch) | 1.0826 |
| Accuracy (mm) | 0.0050 |
| Head Diameter (Decimal Inch) | 1.9685 |
| Gage Line Diameter (mm) | 23.83 |
| Point to Gauge Line (mm) | 70.50 |
| Included Angle | 60.00 |
| Bearing Type | Triple Bearing |
| Maximum RPM | 6300 |
| Material | Tool Steel |
| Carbide-Tipped | Yes |
