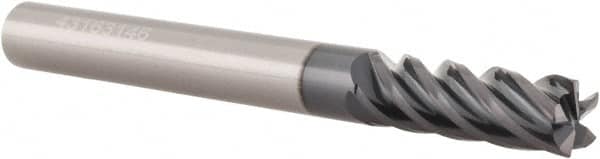

Corner Radius End Mill: 3/8″ Dia, 1/2″ LOC, 0.03″ Radius, 5 Flutes, Solid Carbide 4″ OAL, 3/8″ Shank Dia, Variable ° Helix, AlTiN Coated, Corner Radius End, Centercutting
Item #: 70217526
Brand: Accupro
Model #: 546N3750-030C11
Product Specifications
| Mill Diameter (Decimal Inch) | 0.3750 |
| Mill Diameter (Inch) | 3/8 |
| Length of Cut (Inch) | 1/2 |
| Corner Radius (Decimal Inch) | 0.0300 |
| Number Of Flutes | 5 |
| End Mill Material | Solid Carbide |
| Extended Reach | Yes |
| End Type | Corner Radius |
| Length Type | Regular |
| Flute Type | Spiral |
| Helix Angle | Variable |
| Centercutting | Yes |
| Variable Helix | Yes |
| Shank Diameter (Inch) | 3/8 |
| Neck Diameter (Decimal Inch) | 0.3375 |
| Reach Length (Inch) | 2-1/8 |
| Overall Length (Inch) | 4 |
| Overall Length (Decimal Inch) | 4.0000 |
| Mill Diameter Tolerance | +0.000000 to -0.002000 in |
| Shank Diameter Tolerance | +0.0001/-0. 0004 in |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Material Grade | Micrograin |
| Single Or Double End | Single |
| Coating/Finish | AlTiN |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.5000 |
