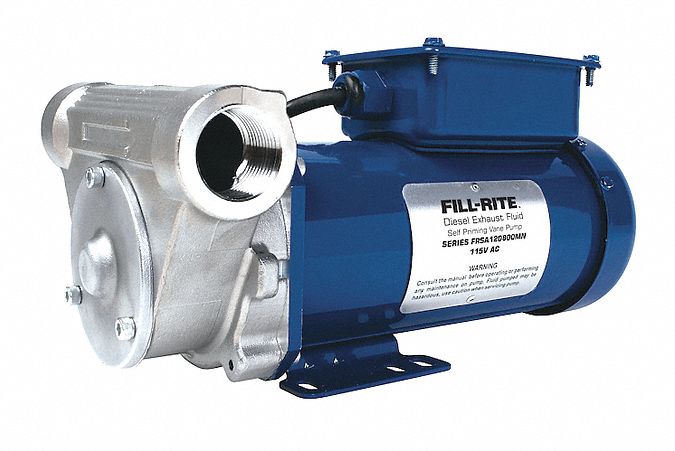

1/2HP 304 Stainless Steel Electric Operated Drum Pump, 8 GPM, 3450 RPM
Item #: 6XGU9
Brand: FILL-RITE
Supplier #: FRSD120800N
Exact Tooling IR#: 08
| Product Specifications | |
|---|---|
| Item | Electric Operated Drum Pump |
| Voltage | 12VDC |
| Phase | 1 |
| HP | 1/2 |
| Motor Enclosure | Totally Enclosed Fan-Cooled |
| Motor Type | Electric DC |
| Housing Material | 304 Stainless Steel |
| Wetted Materials | Stainless Steel, Fluorocarbon, Polypropylene, POM |
| Piston Material | 316 Stainless Steel/POM Vanes |
| For Use With | Diesel Exhaust Fluid, Solvents, Cleaners, Degreasers, Deionized Water, Caustics |
| GPM | 8 |
| Max. Pressure | 30 psi |
| Max. Viscosity | 40 cps |
| Max. GPM for Oil | 5 |
| Max. GPM for Water | 8 |
| Inlet Size | 3/4" NPT |
| Outlet Size | 3/4" NPT |
| Metered | No |
| DEF Compatible | Yes |
| Manufacturers Warranty Length | 2 yr. |
| Max. Head | 64 ft. |
| Max. Liquid Temp. | 120 Degrees F |
| Seal Material | Fluorocarbon |
| Overall Length | 13" |
| pH Range | 2 to 12 |
| RPM | 3450 |
| Action Type | Rotary |
| Application | Diesel Exhaust Fluid, Solvents, Cleaners, Degreasers, Deionized Water, Caustics |
| Max. Temp. | 120 Degrees F |
| UNSPSC # | 40151529 |
| Country of Origin | USA |
