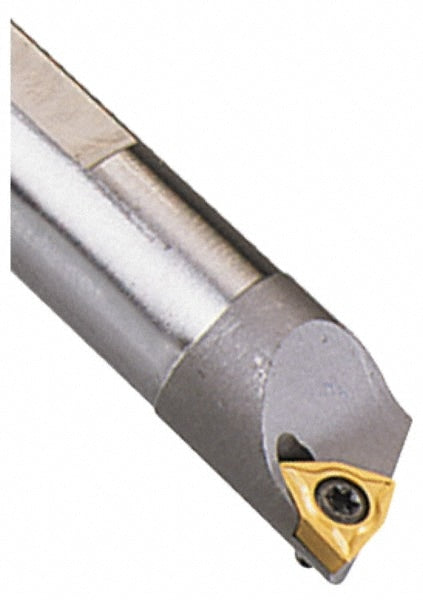

Brand: Widia / Part #: 2828145
Item #: 70735741
Brand: Widia
Model #: 2828145
Product Specifications
| Minimum Bore Diameter (Decimal Inch) | 0.3470 |
| Maximum Bore Depth (Decimal Inch) | 1.2480 |
| Toolholder Style | GSBIW |
| Tool Material | Steel |
| Insert Compatibility | WP.. |
| Shank Diameter (Decimal Inch) | 0.3125 |
| Hand of Holder | Right Hand |
| Overall Length (Decimal Inch) | 4.0000 |
| Compatible Insert Size Code | 1511 |
| Insert Holding Method | Screw |
| Compatible Insert Shape | Trigon |
| Insert Included | No |
| Rake | Positive |
| Cutting Direction | Right Hand |
| Rake Angle | 0.000 |
| Lead Angle | 93.000 |
| Series | GSBIW |
| Insert Inscribed Circle (Decimal Inch) | 0.1875 |
| Compatible Insert Thickness (Decimal Inch) | 0.0620 |
| Multi-use Tool | Yes |
| Cutting Tool Application | Turning; Boring |
| Back of Bar to Cutting Edge (Decimal Inch) | 4.0000 |
| Center to Cutting Edge (Decimal Inch) | 0.1740 |
| Primary Workpiece Material | Non-Ferrous Metal; Stainless Steel; Cast Iron; Steel |
| Primary Workpiece Material Code | P; K; M; N |
| Multi-Use Application | External Turning; Internal Turning; Turning; Boring |
| Number of Inserts Used on Toolholder | 1 |
| Insert Thickness (Decimal Inch) | 0.0620 |
| Coolant Hole Diameter (Decimal Inch) | 0.0400 |
| Coolant Hole Diameter (mm) | 1.02 |
| Insert Size | 1511 |
| Body Diameter | 0.3125 |
| Model Number | GSBIW-312-4-3R |
| Insert Style | WP.. |
| Coolant Through | Yes |
