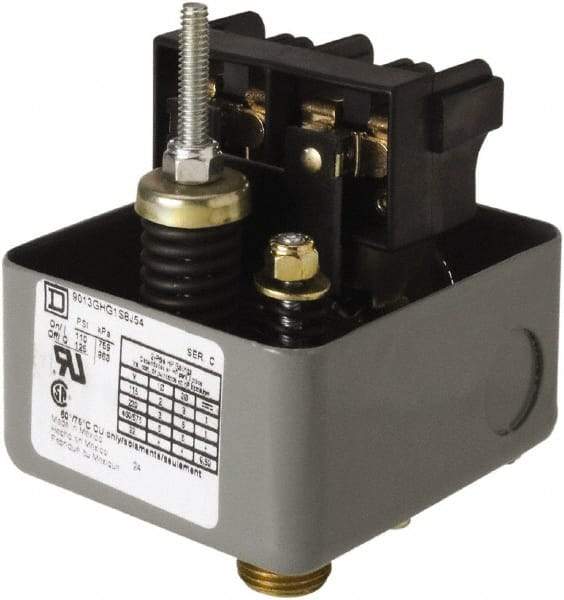

Square D - 1 NEMA Rated, DPST, 110 to 125 psig, Vacuum Switch Pressure and Level Switch - Adjustable Pressure, 575 VAC, 0.13 Inch NPSF Connector, Screw Terminal, For Use with Air Compressors, Electrically Driven Water Pumps
Item #: 69682623
Brand: Square D
Model #: 9013GHG1S8J54
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Pressure Switch Type | Vacuum Switch |
| NEMA Rating | 1 |
| Maximum Pressure Setting | 125 psig |
| Minimum Pressure Setting | 110 psig |
| Differential Pressure Type | Adjustable |
| Maximum Differential Pressure (psi) | 40.00 |
| Minimum Differential Pressure (psi) | 20.00 |
| Voltage | 575 VAC |
| Contact Form | DPST |
| Connector Size (Decimal Inch) | 0.1300 NPSF |
| Terminal Type | Screw |
| For Use With | Air Compressors; Electrically Driven Water Pumps |
| Standards Met | CCN NKPZ; CSA Certified File:LR25490 Class 3211 06; UL 508; UL Listed File E12158 |
