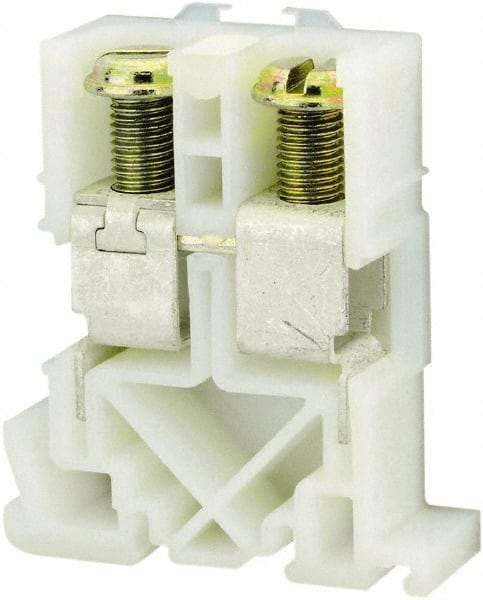

Square D - 600 VAC, 170 Amp, -40 to 275°F, DIN Rail Mount, Nylon Standard Terminal Block - 2 Contacts, Tin Plated Steel, 12 to 1/0 AWG Compatibility, 2.71 Inch High x 2.12 Inch Deep
Item #: 69682458
Brand: Square D
Model #: 9080GD6
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Block Type | Standard |
| Mounting Type | DIN Rail Mount |
| Voltage | 600 VAC |
| Amperage | 170 |
| Number of Contacts | 2 |
| Number of Rows | 1 |
| Maximum Compatible Wire Size (AWG) | 1/0 |
| Minimum Compatible Wire Size (AWG) | 12 |
| Contact Material | Tin-plated Steel |
| Block Material | Nylon |
| Block Color | Natural |
| Maximum Operating Temperature (F) | 275 |
| Minimum Operating Temperature (F) | -40 |
| Overall Height (Decimal Inch) | 2.7100 |
| Overall Height (mm) | 68.83 |
| Overall Depth (mm) | 53.89 |
| Overall Depth (Decimal Inch) | 2.1200 |
| Overall Width (Decimal Inch) | 0.7000 |
| Overall Width (mm) | 17.78 |
| Standards Met | CE Marked; CSA Certified File:LR62144 Class 6228 01; RoHS Compliant; UL Listed File:E60616 CCN XCFR2 |
