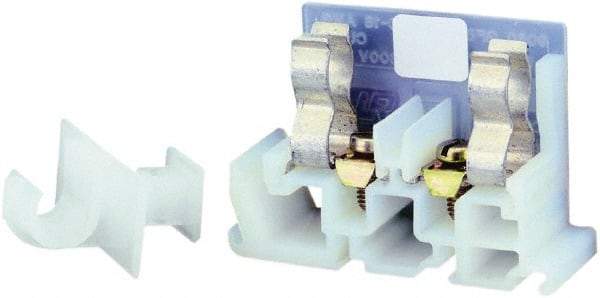

Square D - 600 VAC, 30 Amp, -40 to 275°F, DIN Rail Mount, Nylon Fused Terminal Block - 2 Contacts, Zinc Plated Steel, 18 to 10 AWG Compatibility, 2.33 Inch High x 2.19 Inch Deep
Item #: 69682417
Brand: Square D
Model #: 9080GF6
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Block Type | Fused |
| Mounting Type | DIN Rail Mount |
| Voltage | 600 VAC |
| Amperage | 30 |
| Number of Contacts | 2 |
| Number of Rows | 1 |
| Maximum Compatible Wire Size (AWG) | 10 |
| Minimum Compatible Wire Size (AWG) | 18 |
| Contact Material | Zinc-plated Steel |
| Block Material | Nylon |
| Block Color | Natural |
| Maximum Operating Temperature (F) | 275 |
| Minimum Operating Temperature (F) | -40 |
| Overall Height (Decimal Inch) | 2.3300 |
| Overall Depth (Decimal Inch) | 2.1900 |
| Overall Width (Decimal Inch) | 3/4 |
| Standards Met | CE Marked; CSA Certified File:LR62144 Class 6228 01; RoHS Compliant; UL Listed File:E60616 CCN XCFR2 |
