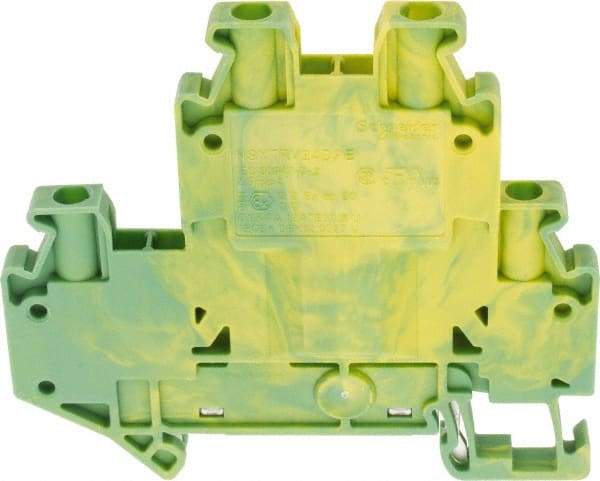

Schneider Electric - 1 Pole, 1,000 Volt, -40 to 266°F, DIN Rail Mount, Polyamide Grounding Terminal Block - 4 Contacts, 26 to 12 AWG Compatibility, 65mm High
Item #: 69680171
Brand: Schneider Electric
Model #: NSYTRV24DPE
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Block Type | Grounding |
| Mounting Type | DIN Rail Mount |
| Voltage | 1000 V |
| Number of Contacts | 4 |
| Number of Poles | 1 |
| Number of Rows | 1 |
| Maximum Compatible Wire Size (AWG) | 12 |
| Maximum Compatible Wire Size (sq mm) | 4 |
| Minimum Compatible Wire Size (AWG) | 26 |
| Minimum Compatible Wire Size (sq mm) | 0.14 |
| Block Material | Polyamide |
| Block Color | Green; Yellow |
| Maximum Operating Temperature (F) | 266 |
| Minimum Operating Temperature (F) | -40 |
| Overall Height (mm) | 65 |
| Overall Length (mm) | 69.90 |
| Overall Width (mm) | 5.20 |
| Standards Met | ATEX; CSA; DNV; GL; GOSTVDE 0304-T21; IEC 60216-1; IECEx; LR; RoHS Compliant; UL |
