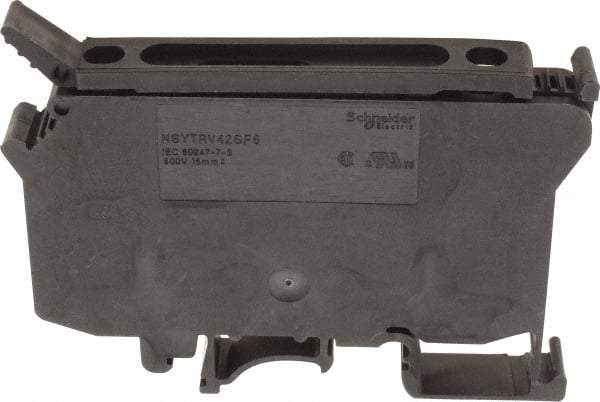

Schneider Electric - 1 Pole, 500 Volt, 10 Amp, -40 to 266°F, DIN Rail Mount, Polyamide Fused Terminal Block - 3 Contacts, 1/2 to 16mm Compatibility, 60-1/2mm High
Item #: 69680080
Brand: Schneider Electric
Model #: NSYTRV42SF6LD
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Block Type | Fused |
| Mounting Type | DIN Rail Mount |
| Voltage | 500 V |
| Amperage | 10 |
| Number of Contacts | 3 |
| Number of Poles | 1 |
| Number of Rows | 1 |
| Maximum Compatible Wire Size (sq mm) | 16 |
| Minimum Compatible Wire Size (sq mm) | 1/2 |
| Block Material | Polyamide |
| Block Color | Black |
| Maximum Operating Temperature (F) | 266 |
| Minimum Operating Temperature (F) | -40 |
| Overall Height (mm) | 60-1/2 |
| Overall Length (mm) | 79 |
| Overall Width (mm) | 10.20 |
| Standards Met | CSA; GOSTVDE 0304-T21; IEC 60216-1; RoHS Compliant; UL |
