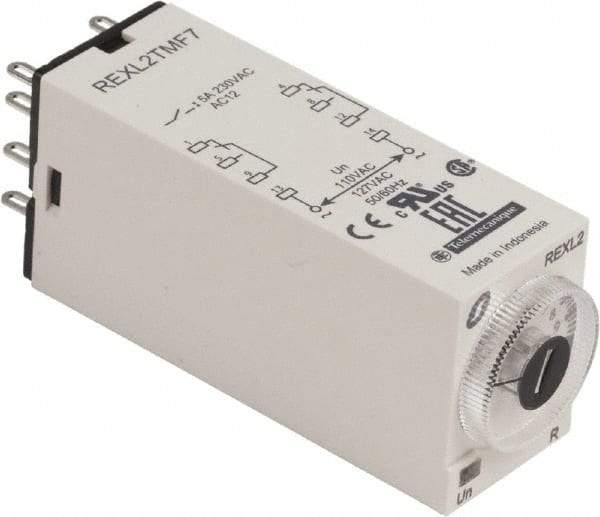

Schneider Electric - 8 Pin, 100 hr Delay, Multiple Range DPDT Time Delay Relay - 5 Contact Amp, 120 VAC, Knob
Item #: 69679801
Brand: Schneider Electric
Model #: REXL2TMF7
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Timer Function | Power On Delay |
| Number of Timing Ranges | Multiple |
| Maximum Delay (Hours) | 100 |
| Minimum Delay (sec.) | 0.1000 |
| Number of Pins | 8 |
| Timer Adjustment Method | Knob |
| Contact Form | DPDT |
| Coil Voltage | 120 VAC |
| Contact Amperage | 5 |
| Frequency Rating (Hz) | 50/60 |
| Mounting Type | Panel Mount |
| For Use With | 8 Pin Quick Connect Sockets |
| Standards Met | 73/23/EEC; 89/336/EEC; 93/68/EEC; CE IEC 61812-1; CSA File:248382 Class:3211 07; cULus Recognized File E173076 CCN NRNT2, NRNT8; EN 50081-2; EN 61000-6-2; EN/IEC 60601-1; EN/IEC 60601-2; EN/IEC 61812-1; RoHS Compliant; UL Listed |
