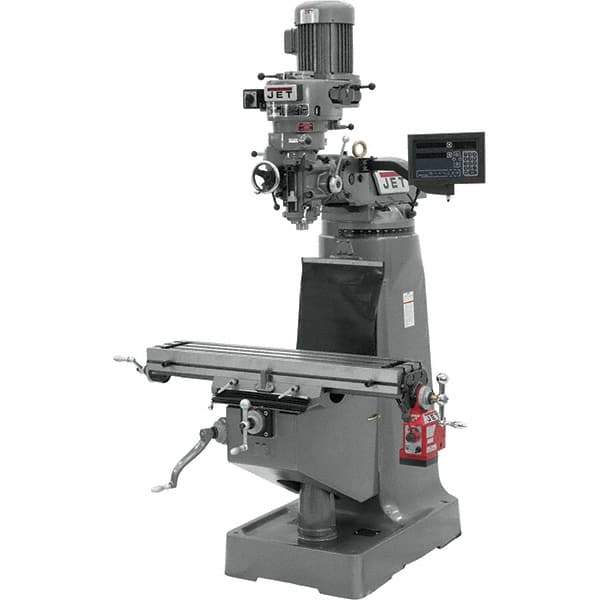

Jet - 9" Table Width x 42" Table Length, Variable Speed Pulley Control, 1 Phase Knee Milling Machine - R8 Spindle Taper, 2 hp
Item #: 69632636
Brand: Jet
Model #: 691198
Exact Tooling IR#: 04
Features and Benefits
Variable speed pulleys are driven by a V-shaped belt system and a variable speed assembly that regulates an infinite speed range change by the turn of a dial.
Single-phase refers to one phase line (coil) that connects to and runs voltage through the motor. Single phase lines are not as efficient as three-phase lines.
| Product Specifications | |
|---|---|
| Spindle Speed Control | Variable Speed Pulley |
| Table Length (Inch) | 42 |
| Table Width (Inch) | 9 |
| Phase | 1 |
| Longitudinal Travel (Decimal Inch) | 23.8750 |
| Cross Travel (Decimal Inch) | 12.5000 |
| Knee Travel (Decimal Inch) | 14.5000 |
| Number of Spindle Speeds | 8 |
| Maximum Spindle Speed (RPM) | 2720.00 |
| Minimum Spindle Speed (RPM) | 80.00 |
| Includes | 3-Axis Quill DRO System |
| Spindle Travel Length (Inch) | 5 |
| Spindle Taper Size | R8 |
| Maximum Spindle to Table Distance (Decimal Inch) | 17.5000 |
| Maximum Spindle To Column Distance (Inch) | 4-1/2 |
| Table Load Capacity (Lb.) | 550.00 |
| Number of T-Slots | 3 |
| Left-Hand Head Tilt (Degrees) | 90.00 |
| Right-Hand Head Tilt (Degrees) | 90.00 |
| Forward Head Tilt (Degrees) | 45.00 |
| Backward Head Tilt (Degrees) | 45.00 |
| Ram Travel Length (Inch) | 13-3/8 |
| Horsepower (HP) | 2.00 |
| Voltage | 115/230 |
| Overall Length (Inch) | 57 |
| Overall Height (Inch) | 82 |
| Overall Depth (Inch) | 64 |
