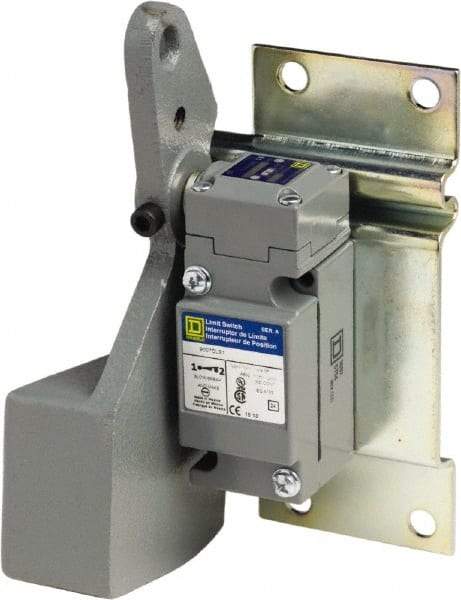

Square D - SPST, NC, 250 VDC, 600 VAC, Screw Terminal, Rotary Head Actuator, General Purpose Limit Switch - 1, 2, 4, 6, 12, 13, 6P NEMA Rating, Front Mount/Rear Mount
Item #: 69528099
Brand: Square D
Model #: 9007CLS1
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Actuator Type | Rotary Head |
| Voltage | 250 VDC; 600 VAC |
| Contact Form | SPST |
| Contact Configuration | NC |
| Terminal Type | Screw Terminal |
| Mounting Type | Front Mount/Rear Mount |
| Connection Type | 1/2 NPT |
| Material | Silver (Contact); Zinc Alloy (Body) |
| Amperage | 5 |
| NEMA Rating | 1; 2; 4; 6; 12; 13; 6P |
| Maximum Operating Temperature (F) | 185 |
| Minimum Operating Temperature (F) | -20 |
| Standards Met | UL Listed File Number E42259 CCN NKCR - CSA Certified File Number LR25490 Class 3211-03 - CE Marked |
