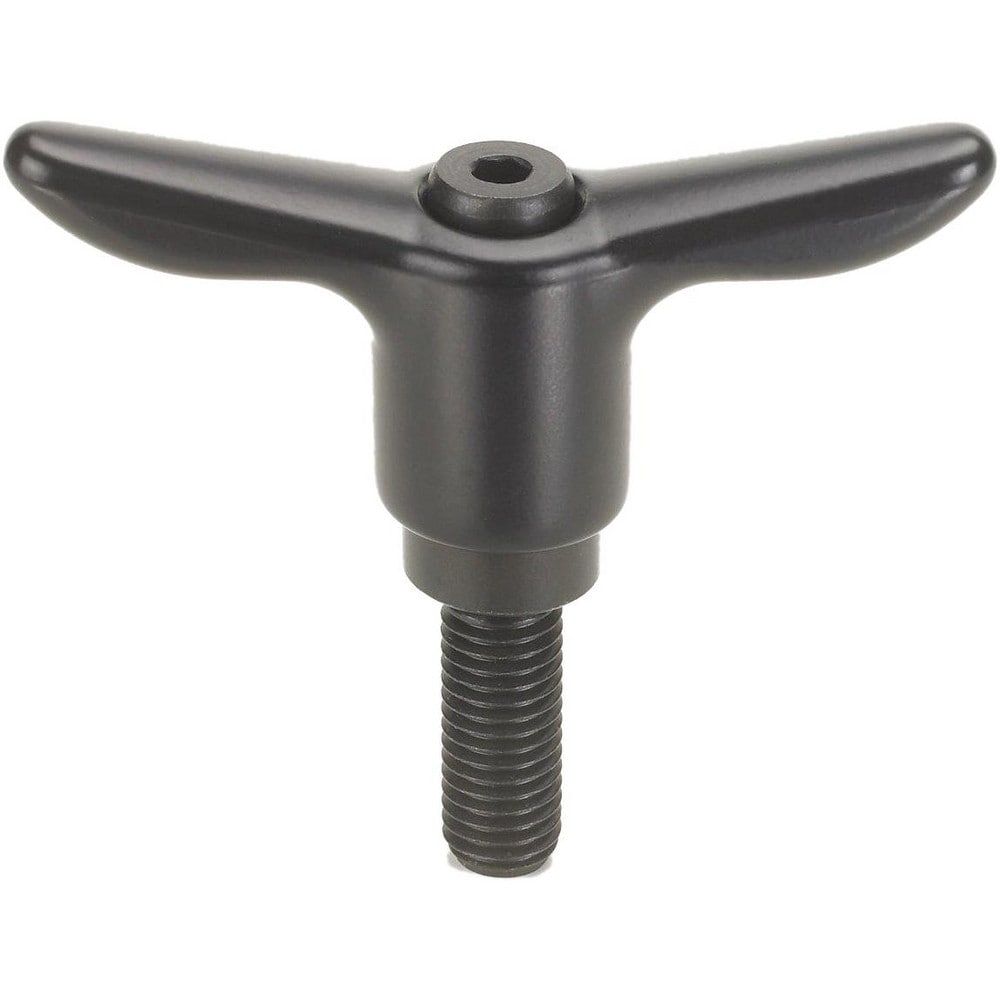

Adjustable Clamping Handle: T-Handle, #10-32 Thread, Die Cast Zinc Handle, 0.3900" Hub Dia, Black
Item #: 60365632
Brand: Morton Machine Works
Model #: TH-3027
Product Specifications
| Connection Type | Threaded Stud |
| Handle Type | T-Handle |
| Mount Type | Threaded Stud |
| Handle Length (Decimal Inch - 4 Decimals) | 1.9800 |
| Overall Length (Decimal Inch) | 1.98 |
| Handle Material | Die Cast Zinc |
| Overall Height (Decimal Inch) | 1.0500 |
| Thread Size | #10-32 |
| Hub Diameter (Decimal Inch) | 0.3900 |
| Stud Length (Decimal Inch) | 1.2500 |
| Stud Material | Steel |
| Color | Black |
| Standards | REACH; RoHS Compliant |
| Body Diameter (Decimal Inch) | 0.5400 |
| Base Diameter (Decimal Inch) | 0.3900 |
| Body Height (Decimal Inch) | 0.8700 |
| Components Finish/Coating | Natural |
| Handle Finish/Coating | Powder Coated |
| Components Material | Steel |
| Handle Radius Length (Decimal Inch) | 0.9900 |
| Handle Arm Style | Modern Design |
| UNSPSC Code | 31162801 |
| Actual Handle Height | 1.0500 |
| Threaded Length | 1.2500 |
| Actual Handle Length | 1.9800 |
| Base Radius (Decimal Inch) | 0.1950 |
| Base Width (Inch) | 0.3900 |
| Connection Type | Threaded Stud |
| Handle Type | T-Handle |
| Mount Type | Threaded Stud |
| Handle Length (Decimal Inch - 4 Decimals) | 1.9800 |
| Overall Length (Decimal Inch) | 1.98 |
| Handle Material | Die Cast Zinc |
| Overall Height (Decimal Inch) | 1.0500 |
| Thread Size | #10-32 |
| Hub Diameter (Decimal Inch) | 0.3900 |
| Stud Length (Decimal Inch) | 1.2500 |
| Stud Material | Steel |
| Color | Black |
| Standards | REACH; RoHS Compliant |
| Body Diameter (Decimal Inch) | 0.5400 |
| Base Diameter (Decimal Inch) | 0.3900 |
| Body Height (Decimal Inch) | 0.8700 |
| Components Finish/Coating | Natural |
| Handle Finish/Coating | Powder Coated |
| Components Material | Steel |
| Handle Radius Length (Decimal Inch) | 0.9900 |
| Handle Arm Style | Modern Design |
| UNSPSC Code | 31162801 |
| Actual Handle Height | 1.0500 |
| Threaded Length | 1.2500 |
| Actual Handle Length | 1.9800 |
| Base Radius (Decimal Inch) | 0.1950 |
| Base Width (Inch) | 0.3900 |
| MSC Part # | 60365632 |
| Mfr Part # | TH-3027 |
| Country of Origin Country of Origin is subject to change | Taiwan |
