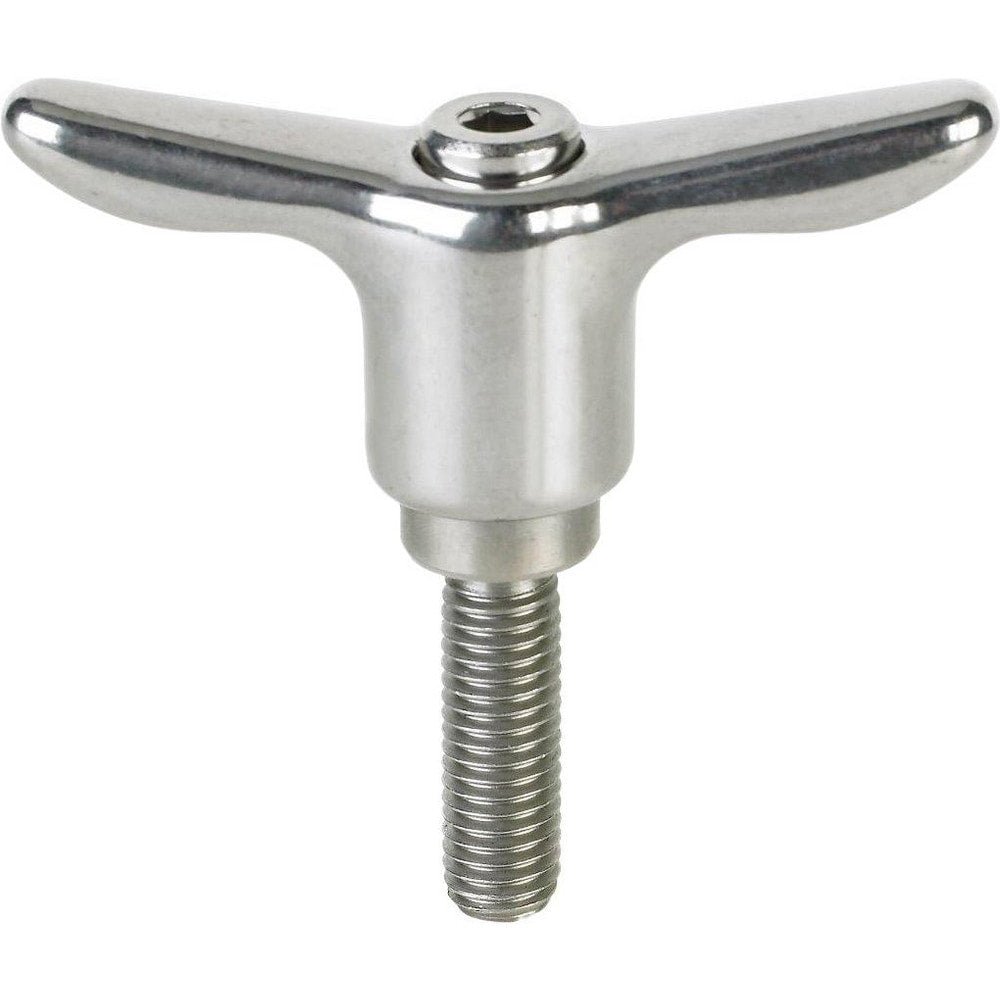

Adjustable Clamping Handle: T-Handle, 5/16-18 Thread, Stainless Steel Handle, 0.5300" Hub Dia, Silver
Item #: 60454709
Brand: Morton Machine Works
Model #: STH-3045SS
Product Specifications
| Connection Type | Threaded Stud |
| Handle Type | T-Handle |
| Mount Type | Threaded Stud |
| Handle Length (Decimal Inch - 4 Decimals) | 2.5600 |
| Overall Length (Decimal Inch) | 2.56 |
| Handle Material | Stainless Steel |
| Overall Height (Decimal Inch) | 1.3100 |
| Thread Size | 5/16-18 |
| Hub Diameter (Decimal Inch) | 0.5300 |
| Stud Length (Decimal Inch) | 2.4800 |
| Stud Material | Stainless Steel |
| Color | Silver |
| Standards | REACH; RoHS Compliant |
| Material Specification | 303; 304 |
| Body Diameter (Decimal Inch) | 0.7000 |
| Base Diameter (Decimal Inch) | 0.5300 |
| Body Height (Decimal Inch) | 1.1000 |
| Components Finish/Coating | Natural |
| Handle Finish/Coating | Bright |
| Components Material | Stainless Steel |
| Handle Radius Length (Decimal Inch) | 1.2800 |
| Handle Arm Style | Modern Design |
| UNSPSC Code | 31162801 |
| Actual Handle Height | 1.3100 |
| Threaded Length | 2.4800 |
| Actual Handle Length | 2.5600 |
| Base Radius (Decimal Inch) | 0.2650 |
| Base Width (Inch) | 0.5300 |
| Connection Type | Threaded Stud |
| Handle Type | T-Handle |
| Mount Type | Threaded Stud |
| Handle Length (Decimal Inch - 4 Decimals) | 2.5600 |
| Overall Length (Decimal Inch) | 2.56 |
| Handle Material | Stainless Steel |
| Overall Height (Decimal Inch) | 1.3100 |
| Thread Size | 5/16-18 |
| Hub Diameter (Decimal Inch) | 0.5300 |
| Stud Length (Decimal Inch) | 2.4800 |
| Stud Material | Stainless Steel |
| Color | Silver |
| Standards | REACH; RoHS Compliant |
| Material Specification | 303; 304 |
| Body Diameter (Decimal Inch) | 0.7000 |
| Base Diameter (Decimal Inch) | 0.5300 |
| Body Height (Decimal Inch) | 1.1000 |
| Components Finish/Coating | Natural |
| Handle Finish/Coating | Bright |
| Components Material | Stainless Steel |
| Handle Radius Length (Decimal Inch) | 1.2800 |
| Handle Arm Style | Modern Design |
| UNSPSC Code | 31162801 |
| Actual Handle Height | 1.3100 |
| Threaded Length | 2.4800 |
| Actual Handle Length | 2.5600 |
| Base Radius (Decimal Inch) | 0.2650 |
| Base Width (Inch) | 0.5300 |
| MSC Part # | 60454709 |
| Mfr Part # | STH-3045SS |
| Country of Origin Country of Origin is subject to change | Taiwan |
