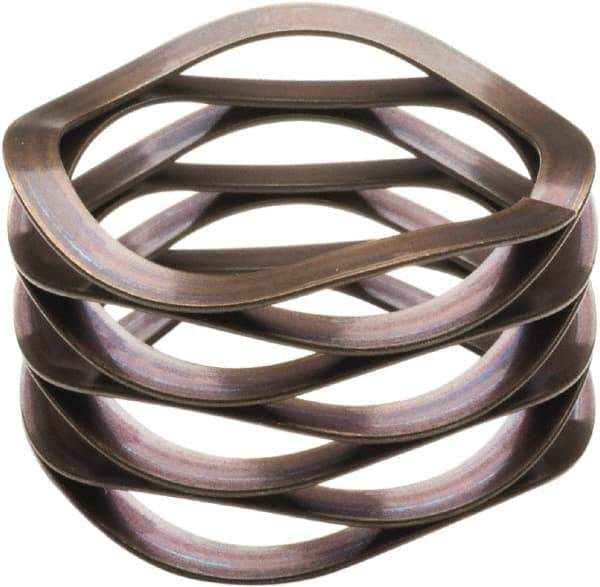

Associated Spring Raymond - 40.64mm ID x 50.8mm OD, Grade 17-7 PH Stainless Steel Multiwave Disc Spring - 0.61mm Thick, 22.1mm Overall Height, 10.29mm Deflection, 90 Lb at Deflection
Item #: 69148690
Brand: Associated Spring Raymond
Model #: MW2000087090S
Exact Tooling IR#: 04
Features and Benefits
Multi-wave disc springs are used for light to medium applications and where space is a concern. The wound material takes up less space that round wire and are a good alternative to compression springs.
Stainless steel is a strong, corrosion-resistant alloy with excellent resistance to heat. It is used in high-stress, outdoor and corrosive applications.
| Product Specifications | |
|---|---|
| Type | Multiwave Disc Spring |
| System of Measurement | Inch |
| Inside Diameter (mm) | 40.64 |
| Inside Diameter (Decimal Inch) | 1.6000 |
| Outside Diameter (mm) | 50.80 |
| Outside Diameter (Decimal Inch) | 2.0000 |
| Material | Stainless Steel |
| Material Grade | 17-7 PH |
| Overall Height (Decimal Inch) | 0.8700 |
| Overall Height (mm) | 22.10 |
| Thickness (Decimal Inch) | 0.0240 |
| Thickness (mm) | 0.61 |
| Deflection (Decimal Inch) | 0.4050 |
| Load at Deflection (Lb.) | 90.00 |
| Deflection (mm) | 10.29 |
| Load at Deflection (N) | 400.29998779 |
