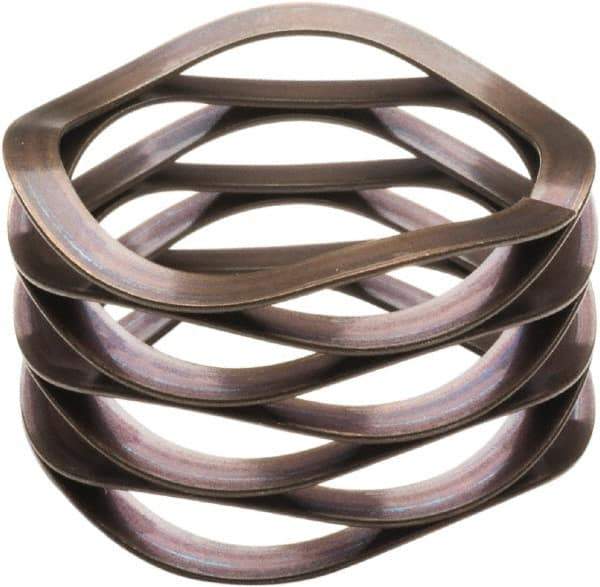

Associated Spring Raymond - 40.64mm ID x 50.8mm OD, Grade 17-7 PH Stainless Steel Multiwave Disc Spring - 0.46mm Thick, 9.53mm Overall Height, 7.14mm Deflection, 25 Lb at Deflection
Item #: 69148641
Brand: Associated Spring Raymond
Model #: MW2000037525S
Exact Tooling IR#: 04
Features and Benefits
Multi-wave disc springs are used for light to medium applications and where space is a concern. The wound material takes up less space that round wire and are a good alternative to compression springs.
Stainless steel is a strong, corrosion-resistant alloy with excellent resistance to heat. It is used in high-stress, outdoor and corrosive applications.
| Product Specifications | |
|---|---|
| Type | Multiwave Disc Spring |
| System of Measurement | Inch |
| Inside Diameter (mm) | 40.64 |
| Inside Diameter (Decimal Inch) | 1.6000 |
| Outside Diameter (mm) | 50.80 |
| Outside Diameter (Decimal Inch) | 2.0000 |
| Material | Stainless Steel |
| Material Grade | 17-7 PH |
| Overall Height (Decimal Inch) | 0.3750 |
| Overall Height (mm) | 9.53 |
| Thickness (Decimal Inch) | 0.0180 |
| Thickness (mm) | 0.46 |
| Deflection (Decimal Inch) | 0.2810 |
| Load at Deflection (Lb.) | 25.00 |
| Deflection (mm) | 7.14 |
| Load at Deflection (N) | 111.19999695 |
