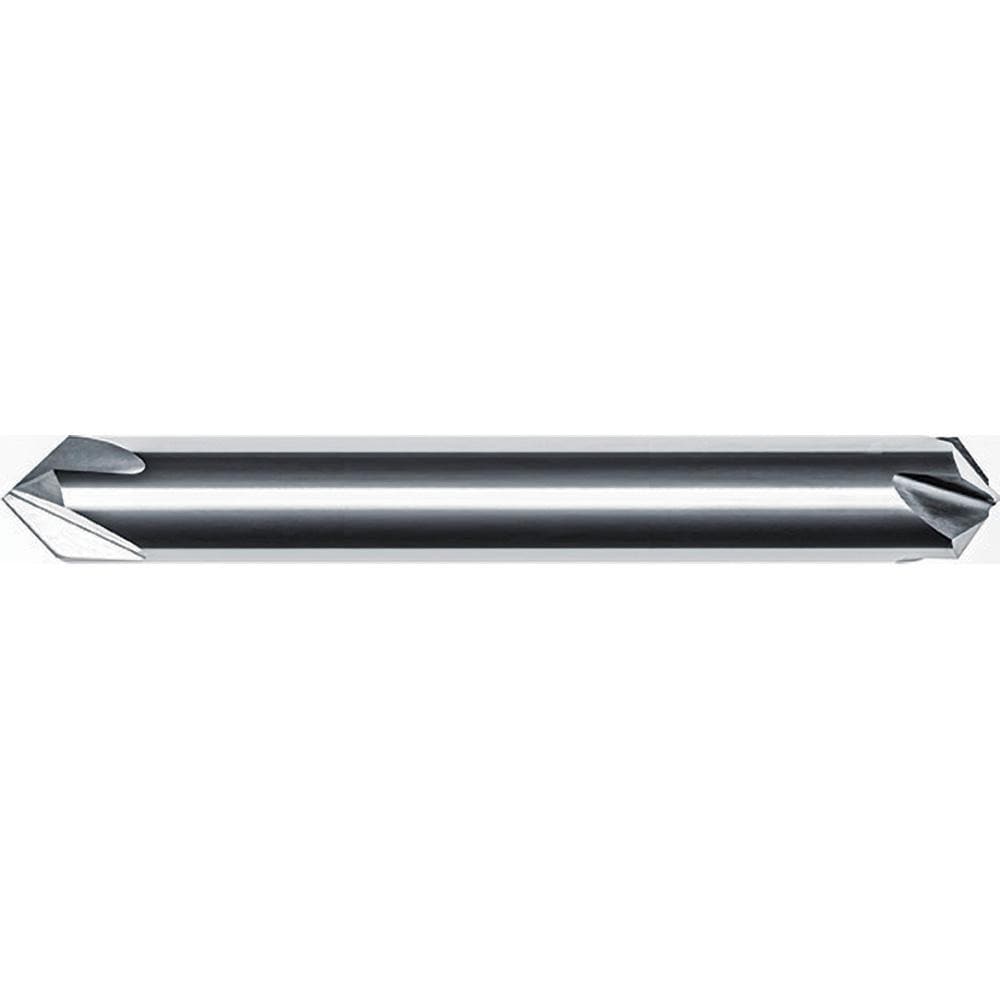

Chamfer Mill: 3/8" Dia, 3/8" Shank Dia, 120.00 deg, 4 Flute, Solid Carbide, Double End
Item #: 74845611
Brand: Internal Tool
Model #: 64-9180-C
Product Specifications
| Cutter Head Diameter (Fractional Inch) | 3/8 |
| Cutter Head Diameter (Decimal Inch) | 0.3750 |
| End Type | Double |
| Shank Diameter (Decimal Inch) | 0.3750 |
| Shank Diameter (Inch) | 3/8 |
| Shank Length (Decimal Inch) | 5.7900 |
| Overall Length (Inch) | 6 |
| Tool Application | Chamfering; Countersinking |
| Number Of Flutes | 4 |
| Cutting Direction | Right Hand |
| Series | 64 |
| Tapered | No |
| Coolant Through | No |
| Chamfer Mill Material | Solid Carbide |
| Material Application | Bronze; Low-Carbon Steel; Monel; Aluminum; Brass; Aluminum Alloy; Iron; Plastic; Nickel Base Alloy; Medium-Carbon Steel; Steel; Molybdenum; High-Nickel Steel; Magnesium Alloy; Stainless Steel; Cast Iron; Titanium; Magnesium; Copper; Copper Alloy |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.1050 |
| Coating/Finish | AlTiN |
| Included Angle | 120.00 |
| UNSPSC Code | 23241600 |
| Cutter Head Diameter (Fractional Inch) | 3/8 |
| Cutter Head Diameter (Decimal Inch) | 0.3750 |
| End Type | Double |
| Shank Diameter (Decimal Inch) | 0.3750 |
| Shank Diameter (Inch) | 3/8 |
| Shank Length (Decimal Inch) | 5.7900 |
| Overall Length (Inch) | 6 |
| Tool Application | Chamfering; Countersinking |
| Number Of Flutes | 4 |
| Cutting Direction | Right Hand |
| Series | 64 |
| Tapered | No |
| Coolant Through | No |
| Chamfer Mill Material | Solid Carbide |
| Material Application | Bronze; Low-Carbon Steel; Monel; Aluminum; Brass; Aluminum Alloy; Iron; Plastic; Nickel Base Alloy; Medium-Carbon Steel; Steel; Molybdenum; High-Nickel Steel; Magnesium Alloy; Stainless Steel; Cast Iron; Titanium; Magnesium; Copper; Copper Alloy |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.1050 |
| Coating/Finish | AlTiN |
| Included Angle | 120.00 |
| UNSPSC Code | 23241600 |
| MSC Part # | 74845611 |
| Mfr Part # | 64-9180-C |
| Country of Origin Country of Origin is subject to change | UNITED STATES |
