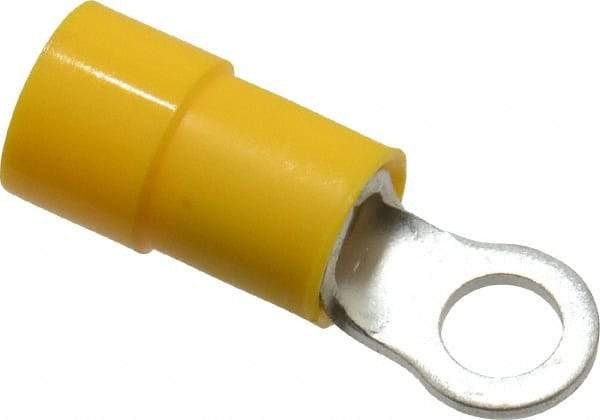

Thomas & Betts - 12-10 AWG Partially Insulated Crimp Connection Circular Ring Terminal - #8 Stud, 0.894" OAL x 0.283" Wide, Tin Plated Copper Contact
Item #: 68886571
Brand: Thomas & Betts
Model #: TV10-8R-XV
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Terminal Type | Circular |
| Insulation Type | Partially Insulated |
| Connection Type | Crimp |
| Compatible Wire Size (AWG) | 12-10 |
| Stud Size (#) | 8 |
| Color | Yellow |
| Contact Material | Copper |
| Thickness (Decimal Inch) | 0.0390 |
| Insulation Material | VINYL |
| Ring Width (Decimal Inch) | 0.2830 |
| Overall Length (Decimal Inch) | 0.8940 |
| Contact Plating | Tin |
| Standards Met | RoHS Compliant |
