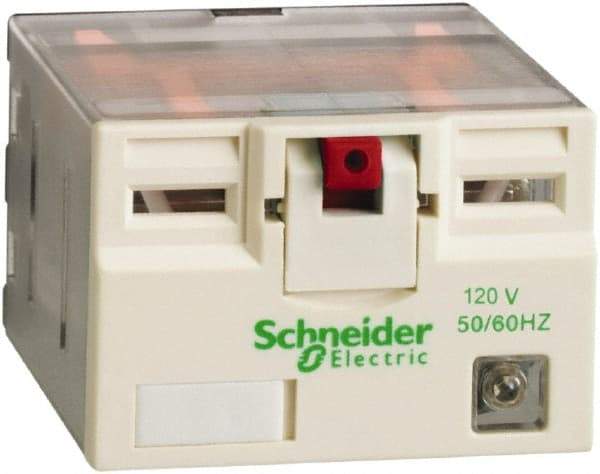

Square D - 14 Pins, 2.5 VA Power Rating, Ice Cube Electromechanical Plug-in General Purpose Relay - 15 Amp at 250 VAC, 4PDT, 120 VAC, 41mm Wide x 39mm High x 27mm Deep
Item #: 68618396
Brand: Square D
Model #: RPM42F7
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Relay Form | Electromechanical |
| Coil Voltage | 120 VAC |
| Terminal Type | Plug-in |
| Contact Form | 4PDT |
| Amperage | 15 @ 250 VAC |
| Maximum Power Rating (W) | 1.40 |
| Maximum Power Rating (VA) | 2.50 |
| Number of Pins | 14 |
| Base Shape | Ice Cube |
| Overall Height (mm) | 39 |
| Overall Height (Decimal Inch) | 1.5400 |
| Overall Width (mm) | 41 |
| Overall Width (Decimal Inch) | 1.6100 |
| Overall Depth (mm) | 27 |
| Overall Depth (Decimal Inch) | 1.0600 |
| Standards Met | CSA C22.2 No. 14; EAC; EN/IEC 61810-1; REACH; RoHS Compliant; UL 508 |
