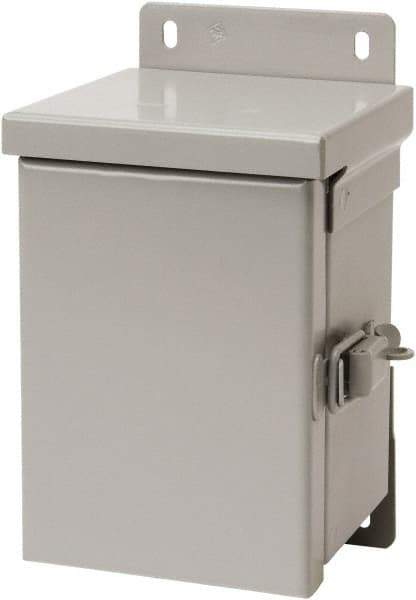

nVent Hoffman - Steel Standard Enclosure Hinge Flat Cover - NEMA 3R, 16" Wide x 16" High x 6" Deep, Watertight
Item #: 68600485
Brand: nVent Hoffman
Model #: A16R166HCR
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Enclosure Type | Standard Enclosure |
| Cover Type | Hinge Flat Cover |
| Enclosure Material | Steel |
| NEMA Rating | 3R |
| Overall Width (Inch) | 16 |
| Overall Width (Decimal Inch) | 16 |
| Overall Height (Inch) | 16 |
| Overall Height (Decimal Inch) | 16 |
| Overall Depth (Inch) | 6 |
| Overall Depth (Decimal Inch) | 6 |
| Cover Color | Gray |
| Finish/Coating | Polyester Powder Coat Finish |
| Material Gauge | 14; 16 |
| Resistance Features | Watertight |
| Includes | Captive Plated Steel Screws; Collar Studs; Continuous Hinge; Hasp; Stainless Steel Pin; Staple |
| Standards Met | ANSI 61; cUL File E27567; cUL Listed to CSA C22.2 No. 94; IEC 60529; UL File E27567; UL Listed 50; UL Listed 50E |
| Overall Width (mm) | 406 |
| Overall Height (mm) | 406 |
| Overall Depth (mm) | 152 |
