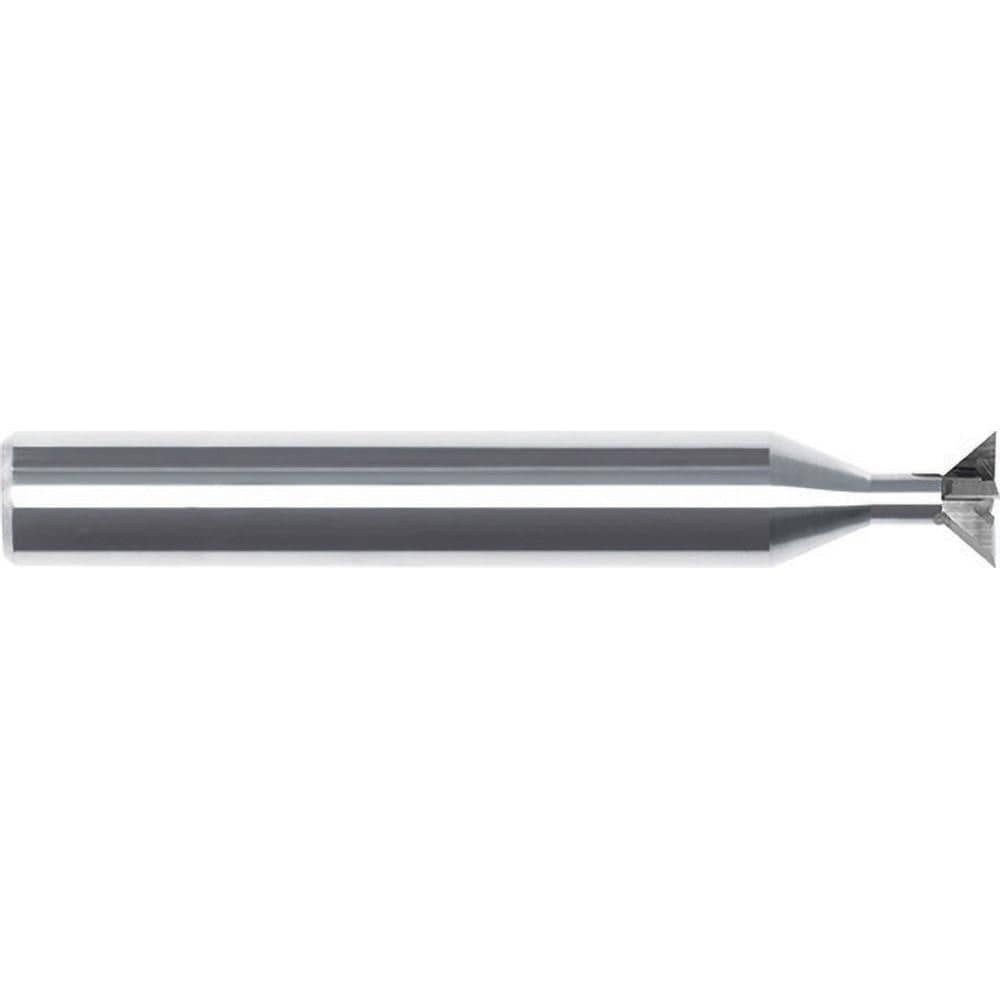

Dovetail Cutters; Included Angle: 90; Cutter Diameter (Inch): 1/8; Cutter Diameter (Decimal Inch): 0.1250; Cutting Width (Decimal Inch): 0.0320
Item #: 98739642
Brand: Internal Tool
Model #: 86-5005-C
Product Specifications
| Included Angle | 90 |
| Cutter Diameter (Inch) | 1/8 |
| Cutter Diameter (Decimal Inch) | 0.1250 |
| Cutting Width (Decimal Inch) | 0.0320 |
| Cutter Material | Solid Carbide |
| Weldon Flat | No |
| Shank Diameter (Inch) | 1/8 |
| Minimum Cutter Diameter (Decimal Inch) | 0.0620 |
| Coating/Finish | AlTiN |
| Shank Length (Inch) | 1-25/32 |
| Neck Length (Decimal Inch) | 0.1870 |
| Neck Diameter (Decimal Inch) | 0.0620 |
| Overall Length (Inch) | 2 |
| Overall Length (Decimal Inch) | 2.0000 |
| Primary Workpiece Material | Non-Ferrous Metal; Stainless Steel; Cast Iron; Steel; Super Alloys & Titanium |
| Primary Workpiece Material Code | P; S; K; M; N |
| Cutting Direction | Right Hand |
| Cutter Material Grade | Micrograin |
| Series | 86 |
| Corner Radius (Decimal Inch) | 0.0100 |
| Maximum Cutter Diameter (Decimal Inch) | 0.1250 |
| Number Of Teeth | 3 |
| Shank Diameter (Decimal Inch) | 0.1250 |
| Shank Length (Decimal Inch) | 1.7810 |
| UNSPSC Code | 23241632 |
| Country of Origin | UNITED STATES |
