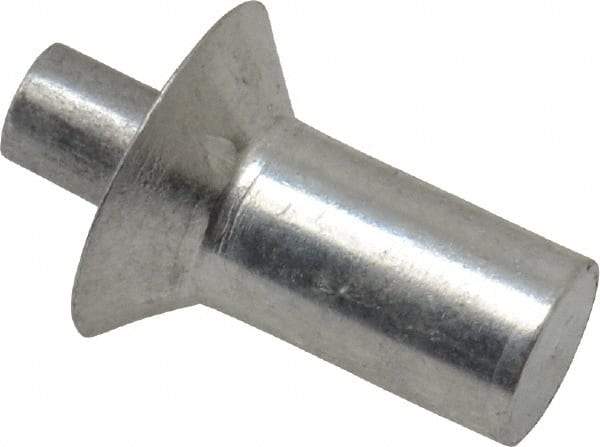

Made in USA - Countersunk Head Aluminum Alloy Drive Blind Rivet - Aluminum Alloy Mandrel, 0.328" to 3/8" Grip, 0.458" Head Diam, 0.266" to 0.281" Hole Diam, 0.436" Length Under Head, 1/4" Body Diam
Item #: 68028802
Brand: Made in USA
Exact Tooling IR#: 04
Features and Benefits
Drive rivets have a small mandrel that is driven with a hammer.
Countersunk head rivets lie flush against the workpiece material and have large bearing surfaces.
Aluminum alloy is lightweight and resistant to corrosion.
Aluminum alloy is lightweight and resistant to corrosion.
| Product Specifications | |
|---|---|
| Type | Drive |
| Head Type | Countersunk |
| Rivet Material | Aluminum Alloy |
| Mandrel Material | Aluminum Alloy |
| Minimum Grip (Decimal Inch) | 0.3280 |
| Maximum Grip (Decimal Inch) | 0.4220 |
| Maximum Grip (Inch) | 3/8 |
| Head Diameter (Decimal Inch) | 0.4580 |
| Minimum Hole Diameter (Decimal Inch) | 0.2660 |
| Maximum Hole Diameter (Decimal Inch) | 0.2810 |
| Countersunk Head Angle | 100.00 |
| Length Under Head (Decimal Inch) | 0.4360 |
| Body Diameter (Decimal Inch) | 0.2500 |
| Body Diameter (Inch) | 1/4 |
| Rivet Finish/Coating | Uncoated |
| Head Height (Decimal Inch) | 0.0950 |
