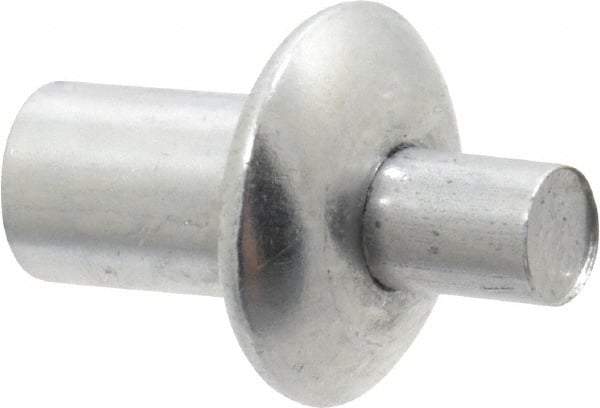

Made in USA - Universal Head Aluminum Alloy Drive Blind Rivet - Aluminum Alloy Mandrel, 0.078" to 1/8" Grip, 3/8" Head Diam, 0.191" to 0.219" Hole Diam, 0.281" Length Under Head, 3/16" Body Diam
Item #: 68026806
Brand: Made in USA
Exact Tooling IR#: 04
Features and Benefits
Drive rivets have a small mandrel that is driven with a hammer.
Universal rivets typically have rounded, domed heads that are protruding rather than countersunk.
Aluminum alloy is lightweight and resistant to corrosion.
Aluminum alloy is lightweight and resistant to corrosion.
| Product Specifications | |
|---|---|
| Type | Drive |
| Head Type | Universal |
| Rivet Material | Aluminum Alloy |
| Mandrel Material | Aluminum Alloy |
| Minimum Grip (Decimal Inch) | 0.0780 |
| Maximum Grip (Decimal Inch) | 0.1720 |
| Maximum Grip (Inch) | 1/8 |
| Head Diameter (Decimal Inch) | 0.3750 |
| Minimum Hole Diameter (Decimal Inch) | 0.1910 |
| Maximum Hole Diameter (Decimal Inch) | 0.2190 |
| Length Under Head (Decimal Inch) | 0.2810 |
| Body Diameter (Decimal Inch) | 0.1875 |
| Body Diameter (Inch) | 3/16 |
| Rivet Finish/Coating | Uncoated |
| Head Height (Decimal Inch) | 0.0800 |
