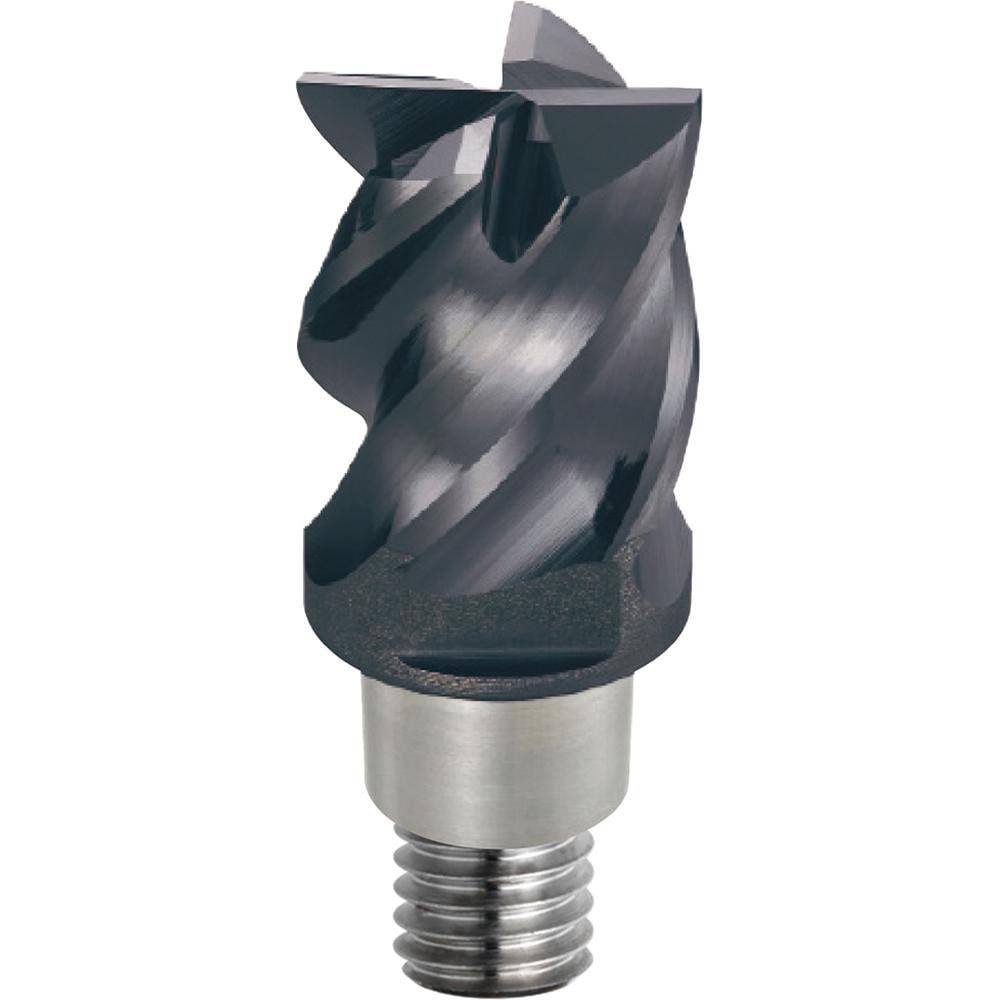

Square End Mill Heads; Mill Diameter (Decimal Inch): 0.7500; Length of Cut (Inch): 3/4; Connection Type: iMX20; Overall Length (Decimal Inch): 1.1810
Item #: 32535130
Brand: Mitsubishi
Model #: 827041
Product Specifications
| Mill Diameter (Decimal Inch) | 0.7500 |
| Length of Cut (Inch) | 3/4 |
| Connection Type | iMX20 |
| Overall Length (Decimal Inch) | 1.1810 |
| Material | Solid Carbide |
| Cutting Direction | Multi-Directional |
| Flute Direction | Right Hand |
| Center Cutting | Center Cutting |
| Flute Type | Helical Flute |
| Helix Angle | Variable |
| Helix Style | Variable |
| Material Grade | Ultra Fine Micrograin |
| Series/List | iMX |
| Neck Diameter (Decimal Inch) | 0.7300 |
| Chamfer Length (Decimal Inch) | 0.7500 |
| Variable Helix | Yes |
| Mill Diameter (Fractional Inch) | 3/4 |
| Pitch | Variable |
| End Type | Square |
| Length Type | Short |
| Case Material | Plastic |
| Chipbreaker | No |
| Shank Type | Dual Contact Taper; Threaded |
| Extended Reach | Yes |
| UNSPSC Code | 27112803 |
| Shank Diameter (Inch - 0 Decimals) | 0.7300 |
| Single Or Double End | Single End |
| Manufacturers Grade | EP7020 |
| Material Application | Aluminum Alloy |
| Variable Index | Yes |
| Number Of Flutes | 4 |
| Case Type | Blow Molded |
| Finish Coating | AlTiN |
