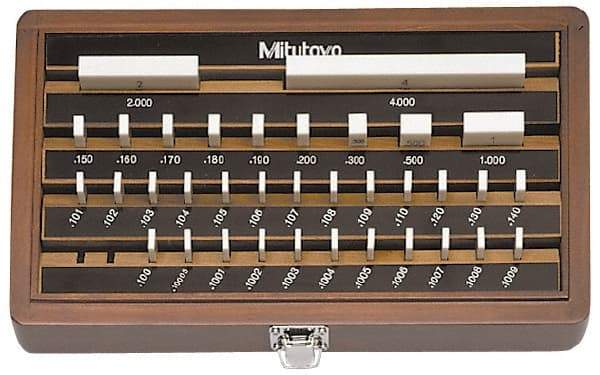

Mitutoyo - 35 Piece, 0.1001 to 4", Grade 0, Ceramic Gage Block Set - Rectangular, 12µ (4"), 5µ (0.1-0.4"), 6µ (0.45-1"), 8µ (2") Tolerance
Item #: 67825893
Brand: Mitutoyo
Model #: 516-314-26
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Type | Gage Block Set |
| Accuracy Grade | 0 |
| Minimum Size (Decimal Inch) | 0.1001 |
| Maximum Size (Inch) | 4 |
| Number of Pieces | 35 |
| Shape | Rectangular |
| Material | Ceramic |
| Size (Decimal Inch) | (1) 0.5; (1) 1.0; (1) 1.0005; (1) 2.0; (1) 4.0; (3) 0.1-0.3 (with 0.1 Step); (9) 0.101-0.109 (with 0.001 Step); (9) 0.11-0.19 (with 0.01 Step); (9) 1.001-1.009 (with 0.0001 Step) |
| Tolerance (micro Inch) | 12 (4"); 5 (0.1-0.4"); 6 (0.45-1"); 8 (2") |
| Step Increments (Decimal Inch) | (3) 1.000; (9) 0.0001; (9) 0.001; (9) 0.01 |
| Certifying Specification | ASME B89.1.9-2002 |
| Individually Serialized | Yes |
| Traceability Certification Included | NIST |
