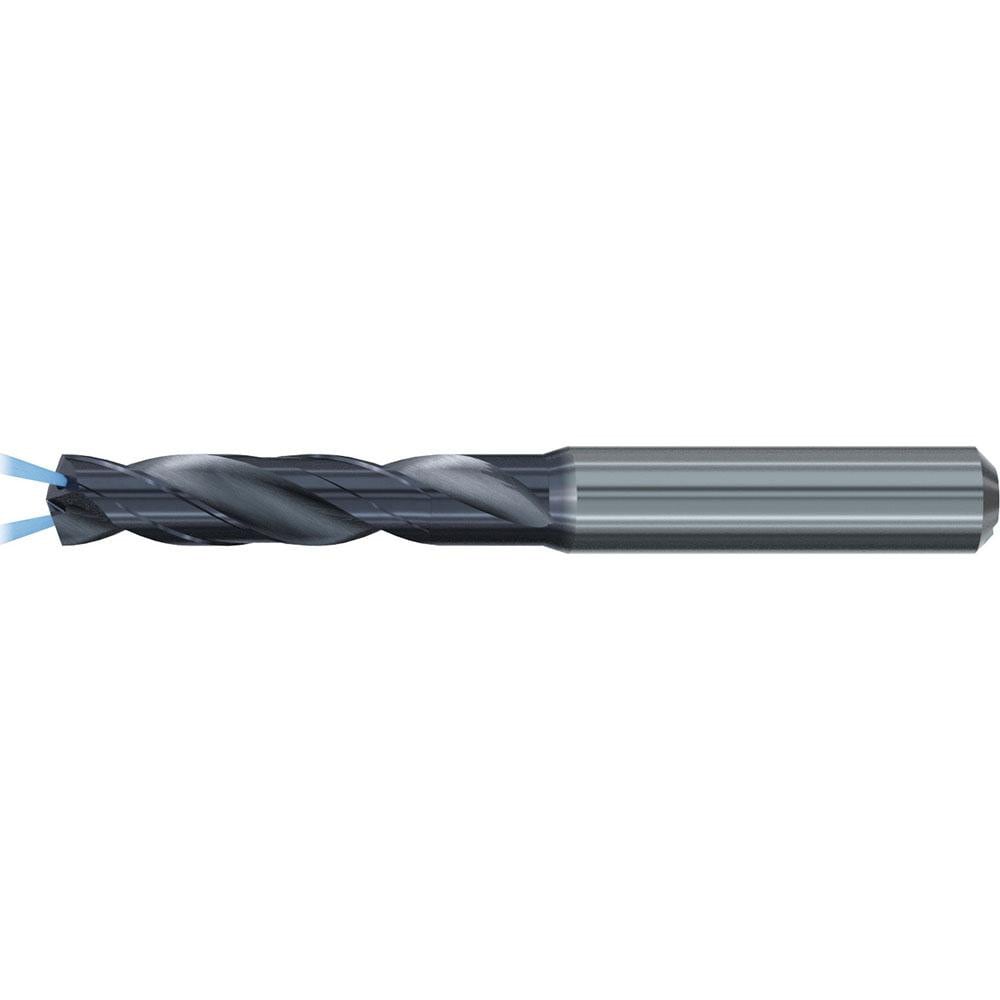

Screw Machine Length Drill Bit: 15.50 mm Dia, 140 deg Point, Solid Carbide
Item #: 89671325
Brand: Emuge
Model #: TA209744.1550
Product Specifications
| Drill Bit Size (mm) | 15.50 |
| Drill Bit Size (Decimal Inch) | 0.6102 |
| Tool Material | Solid Carbide |
| Cutting Direction | Right Hand |
| Coating/Finish | TiAlN |
| Number Of Flutes | 2 |
| Spiral Type | Regular |
| Flute Type | Regular Spiral |
| Drill Point Angle | 140 |
| Coolant Through | Yes |
| Point Type | Self Centering |
| Shank Type | Straight |
| Overall Length (mm) | 115.00 |
| Shank Diameter (mm) | 16.00 |
| Series | TA209744 |
| Proprietary Coating/Finish | TiAlN-T63 |
| Maximum Drilling Depth (mm) | 45.00 |
| Shank Length (mm) | 48.00 |
| Flute By Diameter Ratio | 3xD |
| Flute Length (mm) | 65.00 |
| UNSPSC Code | 23241635 |
| Country of Origin | Germany |
