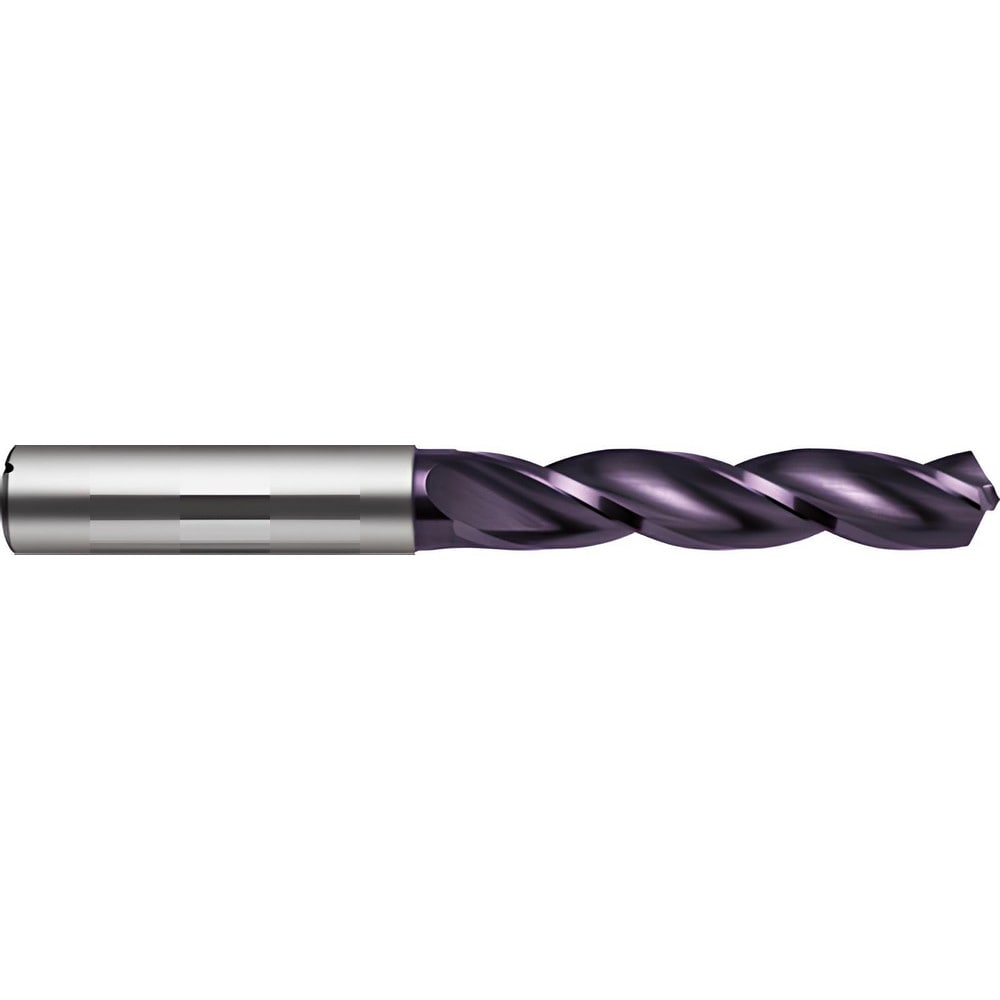

Jobber Drill: 6.70 mm Dia, 130 deg Point, Solid Carbide
Item #: 74954751
Brand: Guhring
Model #: 9065900067000
Product Specifications
| Drill Bit Size (mm) | 6.70 |
| Drill Bit Size (Decimal Inch) | 0.2638 |
| Drill Bit Material | Solid Carbide |
| Drill Point Angle (Degrees) | 130 |
| Flute Type | Helical |
| Cutting Direction | Right Hand |
| Point Type | Proprietary |
| Primary Workpiece Material | Cast Iron; Steel |
| Coolant Through | Yes |
| Number of Flutes | 3 |
| Primary Workpiece Material Code | P; K |
| Overall Length (mm) | 91.00 |
| Overall Length (Decimal Inch) | 3.5827 |
| Spiral Type | Regular |
| Flute Length (mm) | 53.00 |
| Flute Length (Decimal Inch) | 2.0866 |
| Series | 6590 |
| Tool Application | Drilling; Self-Centering |
| Flute By Diameter Ratio | 5xD |
| Shank Diameter (mm) | 8 |
| Maximum Drilling Depth (mm) | 42.95 |
| Shank Length (mm) | 36 |
| Drill Bit Diameter Tolerance | m7 |
| Shank Type | Straight |
| Tool Performance | High Performance |
| UNSPSC Code | 23241634 |
| Drill Bit Size (mm) | 6.70 |
| Drill Bit Size (Decimal Inch) | 0.2638 |
| Drill Bit Material | Solid Carbide |
| Drill Point Angle (Degrees) | 130 |
| Flute Type | Helical |
| Cutting Direction | Right Hand |
| Point Type | Proprietary |
| Primary Workpiece Material | Cast Iron; Steel |
| Coolant Through | Yes |
| Number of Flutes | 3 |
| Primary Workpiece Material Code | P; K |
| Overall Length (mm) | 91.00 |
| Overall Length (Decimal Inch) | 3.5827 |
| Spiral Type | Regular |
| Flute Length (mm) | 53.00 |
| Flute Length (Decimal Inch) | 2.0866 |
| Series | 6590 |
| Tool Application | Drilling; Self-Centering |
| Flute By Diameter Ratio | 5xD |
| Shank Diameter (mm) | 8 |
| Maximum Drilling Depth (mm) | 42.95 |
| Shank Length (mm) | 36 |
| Drill Bit Diameter Tolerance | m7 |
| Shank Type | Straight |
| Tool Performance | High Performance |
| UNSPSC Code | 23241634 |
| MSC Part # | 74954751 |
| Mfr Part # | 9065900067000 |
| Country of Origin Country of Origin is subject to change | Germany |
