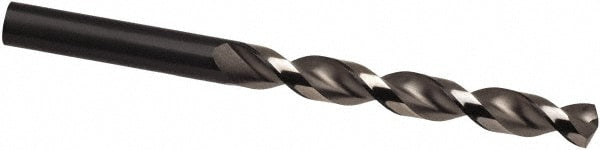

Jobber Drill: 8.25 mm Dia, 130 deg Point, High Speed Steel
Item #: 69344950
Brand: Guhring
Model #: 9005490082500
Product Specifications
| Drill Bit Size (mm) | 8.25 |
| Drill Bit Size (Decimal Inch) | 0.3248 |
| Drill Bit Material | HSS |
| Drill Point Angle (Degrees) | 130 |
| Coating/Finish | Bright/Uncoated |
| Flute Type | Parabolic |
| Cutting Direction | Right Hand |
| Point Type | Cone Relief |
| Primary Workpiece Material | Aluminum & Non-Ferrous; Cast Iron; Steel |
| Coolant Through | No |
| Number of Flutes | 2 |
| Shank Diameter (Decimal Inch) | 0.5000 |
| Overall Length (mm) | 117.00 |
| Overall Length (Decimal Inch) | 4.6063 |
| Spiral Type | Regular |
| Flute Length (mm) | 75.00 |
| Flute Length (Decimal Inch) | 2.9528 |
| Flute By Diameter Ratio | 5xD |
| Shank Diameter (mm) | 8.25 |
| Maximum Drilling Depth (Decimal Inch) | 1.2188 |
| Web Thinning | Web-Thinned |
| Drill Bit Grade | Heavy Duty |
| Drill Bit Size Range (Decimal Inch) | 0.3000 - 0.3500 |
| Drill Bit Size Range (mm) | 8.00 - 9.00 |
| Specification Designation | DIN |
| UNSPSC Code | 23241634 |
| Drill Bit Size (mm) | 8.25 |
| Drill Bit Size (Decimal Inch) | 0.3248 |
| Drill Bit Material | HSS |
| Drill Point Angle (Degrees) | 130 |
| Coating/Finish | Bright/Uncoated |
| Flute Type | Parabolic |
| Cutting Direction | Right Hand |
| Point Type | Cone Relief |
| Primary Workpiece Material | Aluminum & Non-Ferrous; Cast Iron; Steel |
| Coolant Through | No |
| Number of Flutes | 2 |
| Shank Diameter (Decimal Inch) | 0.5000 |
| Overall Length (mm) | 117.00 |
| Overall Length (Decimal Inch) | 4.6063 |
| Spiral Type | Regular |
| Flute Length (mm) | 75.00 |
| Flute Length (Decimal Inch) | 2.9528 |
| Flute By Diameter Ratio | 5xD |
| Shank Diameter (mm) | 8.25 |
| Maximum Drilling Depth (Decimal Inch) | 1.2188 |
| Web Thinning | Web-Thinned |
| Drill Bit Grade | Heavy Duty |
| Drill Bit Size Range (Decimal Inch) | 0.3000 - 0.3500 |
| Drill Bit Size Range (mm) | 8.00 - 9.00 |
| Specification Designation | DIN |
| UNSPSC Code | 23241634 |
| MSC Part # | 69344950 |
| Mfr Part # | 9005490082500 |
| Country of Origin Country of Origin is subject to change | Germany |
