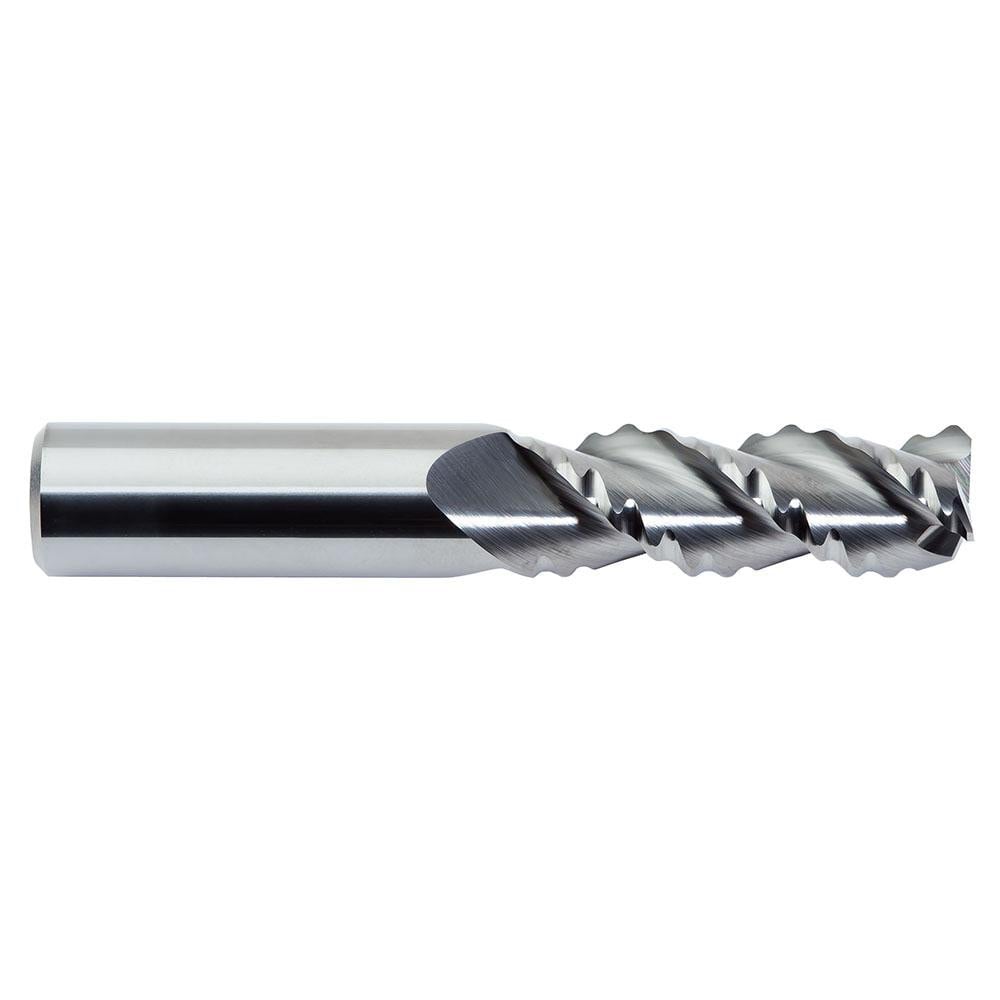

Roughing End Mill: 6 mm Dia, 3 Flutes, Single End, Chipbreaker, Solid Carbide
Item #: 76567668
Brand: M.A. Ford
Model #: 13423620
Product Specifications
| Mill Diameter (mm) | 6.00 |
| Number Of Flutes | 3 |
| End Mill Material | Solid Carbide |
| Length of Cut (mm) | 20.00 |
| Coating/Finish | Bright/Uncoated |
| Centercutting | Yes |
| Mill Diameter (Decimal Inch) | 0.2362 |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.7874 |
| Shank Diameter (mm) | 6 |
| Shank Diameter (Decimal Inch) | 0.2362 |
| Shank Type | Straight-Cylindrical |
| Extended Reach | No |
| Variable Helix | No |
| Variable Index | No |
| Chipbreaker | Yes |
| Material Grade | Micrograin |
| Single Or Double End | Single |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Flute Type | Spiral |
| Helix Style | High |
| Shank Diameter Tolerance | h6 |
| Mill Diameter Tolerance | +0.000 to -0.005 in; +0.000 to -0.127 mm |
| Series | 134 |
| UNSPSC Code | 27112803 |
| Country of Origin | UNITED STATES |
