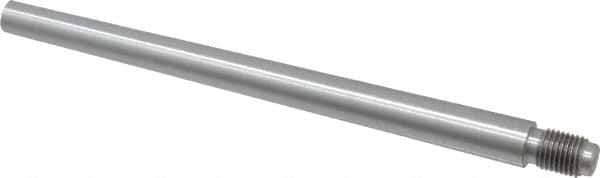

Value Collection - Size 8, 0.49" Large End Diam, Uncoated Steel 7/16-20 Threaded Taper Pin - Grade C-12L14, 6 Pin Length
Item #: 67705327
Brand: Value Collection
Exact Tooling IR#: 04
Features and Benefits
Threaded taper pins have external threads on the large-diameter end. They are effective in blind holes that have been taper reamed.
| Product Specifications | |
|---|---|
| Type | Threaded Taper Pin |
| System of Measurement | Inch |
| Taper Pin Size | 8 |
| Pin Length (Inch) | 6 |
| Large End Diameter (Decimal Inch) | 0.4900 |
| Material | Steel |
| Material Grade | C-12L14 |
| Finish/Coating | Uncoated |
| Thread Size (Inch) | 7/16-20 |
| Thread Length (Inch) | 29/64 |
| Thread End Length (Inch) | 11/16 |
| Nose Length (Inch) | 7/64 |
| Nose Diameter (Inch) | 11/32 |
| Neck Length (Inch) | 1/8 |
| Neck Diameter (Decimal Inch) | 0.3680 |
| End Radius (Inch) | 1/2 |
| Taper Per Foot (Inch) | 1/4 |
| Minimum Diameter Tolerance (Decimal Inch) | -0.0007 |
| Maximum Diameter Tolerance (Decimal Inch) | 0.0013 |
| Fastener Standard | AN386 |
