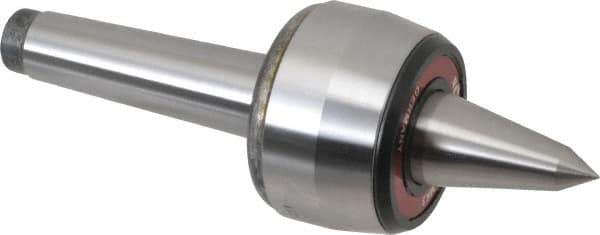

Rohm - MT3 Taper Shank, 2.362" Head Diam 882 Lb Capacity Live Center - 5,000 Max RPM, 1.661" Head Length, 63/64" Point Diam, 1.85" Point Len, 880 Lb Max Workpc, 6.949" OAL, Long Point
Item #: 67438531
Brand: Rohm
Model #: 58670
Exact Tooling IR#: 04
Features and Benefits
Long points are used for shaft work, parts with large diameters and where tool clearance is a priority.
| Product Specifications | |
|---|---|
| Shank Type | Taper Shank |
| Taper Size | MT3 |
| Maximum Workpiece Weight (Lb.) | 880.00 |
| Maximum Workpiece Weight (kg) | 400.00 |
| Point Style | Long |
| Point Diameter (mm) | 25.00 |
| Point Diameter (Decimal Inch) | 0.9843 |
| Point Length (mm) | 47.00 |
| Point Length (Decimal Inch) | 1.8500 |
| Accuracy (mm) | 0.0050 |
| Load Capacity (Lb.) | 882.00 |
| Head Diameter (Decimal Inch) | 2.3620 |
| Head Length (Decimal Inch) | 1.6610 |
| Overall Length (Decimal Inch) | 6.9490 |
| Gage Line Diameter (mm) | 23.83 |
| Point to Gauge Line (mm) | 95.50 |
| Included Angle | 60.00 |
| Bearing Type | Triple Bearing |
| Maximum RPM | 5000 |
| Material | Tool Steel |
| Carbide-Tipped | No |
